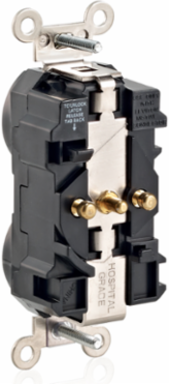

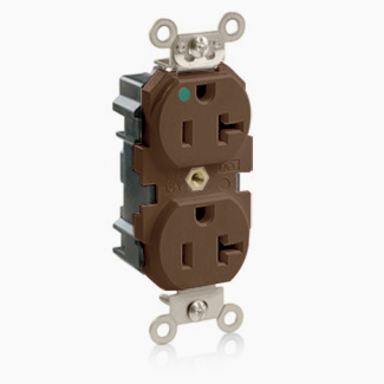

Leviton MT830 Lev-Lok Duplex Receptacle
Leviton MT830 Lev-Lok Duplex Receptacle
- MPN: MT830
- UPC: 078477419496
- PPN: LEV-MT830
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$32.89/ EA
Description

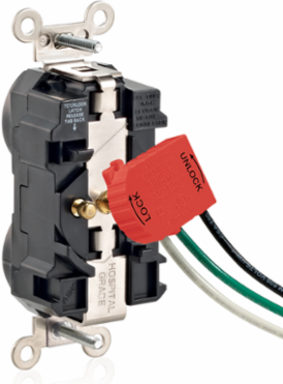

Lev-Lok Duplex Receptacle Outlet, Heavy-Duty Hospital Grade, Tamper-Resistant, Smooth Face, 20 Amp, 125 Volt, Modular, NEMA 5-20R, 2-Pole, 3-Wire, Self-Grounding - Brown Mating Lev-Lok Wiring Module Required for Use Lev-Lok Savings Calculator
Specifications
Standards and Certifications
- ANSI
- C-73
- NOM Certified
- 057
- UL Fed Spec WC-596
- File E13399
- cULus
- Listed
NEMAWD-1 & WD-6
RoHSCompliant
Warranty10-Year Limited
Material Specifications
- Base Material
- Nylon
- Cover Material
- Nylon
- Line Contacts
- 0.040” Thick Solid Brass
- Mounting Screws
- Triple Combination Head, Steel
- Shutter Mechanism
- Delrin® Acetal
BushingSolid Brass
Ground ClipsBrass
Locking PinsSolid Brass
Mounting StrapGalvanized Steel with Riveted Ground Contacts
Mechanical Specifications
- Product ID
- Ratings are permanently marked on device
TerminationModular
Specifications
- Country of Origin
- Mexico
RoHS CompliantFalse
Product Features
- Brand
- Lev-Lok
- Device Type
- Duplex Receptacle Outlet
- Grade
- Heavy-Duty Hospital Grade
ColorBrown
FeatureTamper-Resistant|Smooth Face
Environmental Specifications
- Operating Temperature
- -40°C to 60°C
Electrical Specifications
- Amperage
- 20 A
- Dielectric Voltage
- Withstands 2000V per UL498
- Maximum Working Voltage
- 125V as rated
- Temperature Rise
- Max 30C after 250 cycles OL at 200 percent rated current
- Wire
- 3
Current InterruptingCertified for current interrupting at full rated current
GroundingSelf-Grounding
Pole2
Voltage125 VAC
AC Horsepower Ratings
- Horsepower Rating
- 1 HP
