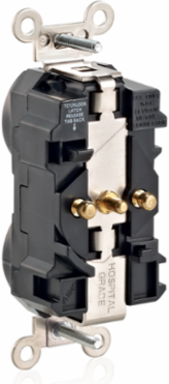

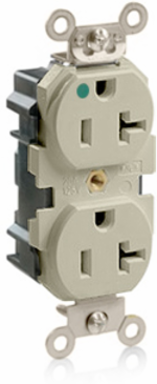

Leviton M8300-I Lev-Lok Duplex Receptacle, 20 Amp, 125 Volt, Extra Heavy-Duty Hospital Grade
Leviton M8300-I Lev-Lok Duplex Receptacle, 20 Amp, 125 Volt, Extra Heavy-Duty Hospital Grade
- MPN: M8300-I
- UPC: 078477363829
- PPN: LEV-M8300-I
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$31.86/ EA
Description

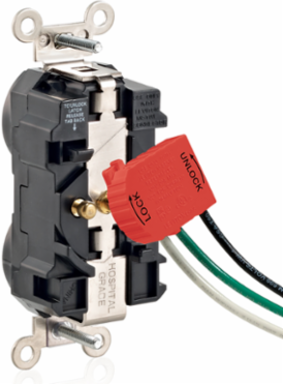

Lev-Lok Duplex Receptacle Outlet, Extra Heavy-Duty Hospital Grade, Smooth Face, 20 Amp, 125 Volt, Modular, NEMA 5-20R, 2-Pole, 3-Wire, Self-Grounding - Ivory Mating Lev-Lok Wiring Module Required for Use Calculate Time & Money Saved with the Lev-Lok Savings Calculator!
Specifications
Standards and Certifications
- ANSI
- C-73
- NOM Certified
- 057
- cULus
- Listed
NEMAWD-1 & WD-6
Warranty10-Year Limited
Material Specifications
- Base Material
- Nylon
- Cover Material
- Nylon
- Line Contacts
- 0.040” Thick Solid Brass
- Mounting Screws
- Triple Combination Head, Steel
BushingSolid Brass
Ground ClipsNickel-Plated Brass
Locking PinsSolid Brass
Mounting StrapSingle Piece Nickel-Plated Brass with integral ground contact
Mechanical Specifications
- Product ID
- Ratings are permanently marked on device
TerminationModular
Specifications
- Country of Origin
- Mexico
RoHS CompliantFalse
Product Features
- Brand
- Lev-Lok
- Device Type
- Duplex Receptacle Outlet
- Grade
- Extra Heavy-Duty Hospital Grade
ColorIvory
Feature 4Smooth Face
Environmental Specifications
- Flammability
- Rated V-2 per UL94
Operating Temperature-40°C to 60°C
Electrical Specifications
- Amperage
- 20 A
- Dielectric Voltage
- Withstands 2000V per UL498
- Maximum Working Voltage
- 125V as rated
- Temperature Rise
- Max 30C after 250 cycles OL at 200 percent rated current
- Wire
- 3
Current InterruptingCertified for current interrupting at full rated current
GroundingSelf-Grounding
Pole2
Voltage125 VAC
AC Horsepower Ratings
- Horsepower Rating
- 1 HP
