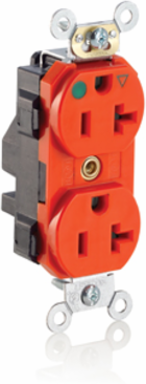

Leviton M8300-IG Lev-Lok Isolated Ground Duplex Receptacle, 20 Amp, 125 Volt, Heavy-Duty Hospital Grade, Orange
Leviton M8300-IG Lev-Lok Isolated Ground Duplex Receptacle, 20 Amp, 125 Volt, Heavy-Duty Hospital Grade, Orange
- MPN: M8300-IG
- UPC: 078477502297
- PPN: LEV-M8300-IG
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$34.04/ EA
Description
Lev-Lok Isolated Ground Duplex Receptacle Outlet, Heavy-Duty Hospital Grade, Smooth Face, 20 Amp, 125 Volt, Modular, NEMA 5-20R, 2-Pole, 3-Wire, Self-Grounding - Orange Mating Lev-Lok Wiring Module Required for Use Calculate Time & Money Saved with the Lev-Lok Savings Calculator!
Specifications
Standards and Certifications
- ANSI
- C-73
- NEMA
- WD-6
- RoHS
- Compliant
- UL Fed Spec WC-596
- File E13399
CSA C22.2 No. 42File 152105
NOM057
UL 498File E13399
Warranty10-Year Limited
Material Specifications
- Body Material
- Nylon
- Face Material
- Nylon
- Isolated Ground System
- Brass
- Locking Pins
- Solid Brass
- Strap Material
- Galvanized Steel
ColorOrange
Ground ClipsBrass
Line Contacts0.040” Thick Solid Brass
Shutter MechanismDelrin® Acetal
Mechanical Specifications
- Lead Identification
- Leads identified in accordance with UL 498 (black, white & green)
- Termination
- Modular
Product IDMarkings are permanently marked on device
Specifications
- Country of Origin
- Mexico
RoHS CompliantFalse
Product Features
- Brand
- Lev-Lok
- Feature 4
- Smooth Face
- Grade
- Heavy-Duty Hospital Grade
Device TypeDuplex Receptacle Outlet
FunctionIsolated Ground
Environmental Specifications
- Flammability
- Rated V-2 per UL94
Operating Temperature-40°C to 60°C
Electrical Specifications
- Amperage
- 20 A
- Dielectric Voltage
- Withstands 2000V per UL498
- Pole
- 2
- Voltage
- 125 VAC
Current LimitingFull Rated Current
GroundingSelf-Grounding
Temperature RiseMax 30C after 250 cycles OL at 200 percent rated current
Wire3
AC Horsepower Ratings
- Horsepower Rating
- 1 HP
