Schneider Electric ILM62DCC000 Lexium 62 ILM Daisy chain connection box assembly - type C

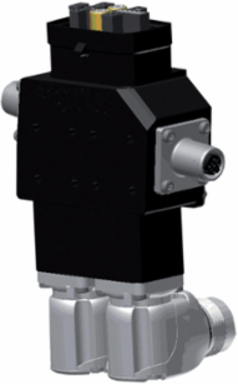

Lexium 62 ILM Daisy chain connection box assembly - type C
  • MPN: ILM62DCC000
  • PPN: SCH-ILM62DCC000

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$914.72/ EA

Description

This product is part of the PacDrive 3 range, an offer of connection boxes for Lexium 62 ILM daisy chains. This type C connection box for Lexium 62 ILM daisy chains. Its dimensions are 255mm (width) x 102mm (depth) x 265mm (height). It weighs 0.535kg. It is suitable for use in general machine control, packaging machine automation, material handling applications. Lexium 62 ILM integrated servo modules can be controlled with all PacDrive LMC Eco and Pro/Pro 2 series motion controllers via SERCOS communication. Multiaxis integrated servo drives from 0.31kW to 1.91kW for automation solutions based on PacDrive 3.

Specifications

Complementary

Height
265 mm
Depth
102 mm
Width255 mm
Net Weight0.535 kg

Specifications

Range Of Product
PacDrive 3
Product Or Component Type
connection box
Product Compatibilityintegrated drive LXM 62 ILM
Range CompatibilityLexium 62 ILM daisy chain

Offer Sustainability

China Rohs Regulation
X
Mercury Free
Yes
Eu Rohs Directive
Pro-active compliance (Product out of EU RoHS legal scope)
Reach Free Of Svhc
Yes
Rohs Exemption InformationYes
Pvc FreeYes
Reach RegulationFree of Substances of Very High Concern above the threshold
