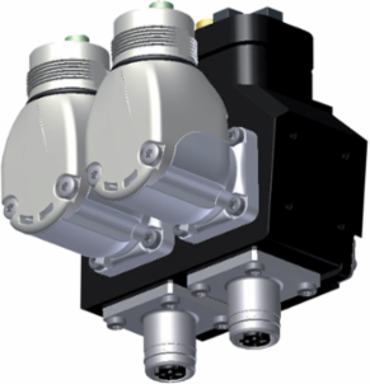

Schneider Electric ILM62DCA000 Lexium 62 ILM Daisy Chain Connection Box, 255 x 102 x 265 mm, 0.535 kg
- MPN: ILM62DCA000
- PPN: SCH-ILM62DCA000
- UNSPSC: 26111515
CAD
$878.55
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This product is part of the PacDrive 3 range, an offer of connection boxes for Lexium 62 ILM daisy chains. This type A connection box for Lexium 62 ILM daisy chains. Its dimensions are 255mm (width) x 102mm (depth) x 265mm (height). It weighs 0.535kg. It is suitable for use in general machine control, packaging machine automation, material handling applications. It is compatible with integrated drive LXM 62 ILM. Lexium 62 ILM integrated servo modules can be controlled with all PacDrive LMC Eco and Pro/Pro 2 series motion controllers via SERCOS communication. Multiaxis integrated servo drives from 0.31kW to 1.91kW for automation solutions based on PacDrive 3.
Features
- Practical connection box for daisy chain configuration
- Designed specifically for connecting multiple Lexium 62 ILM integrated servo drives in a daisy-chain configuration
- Enables efficient connection of servo drives ranging from 031 kW to 191 kW, ideal for scalable automation solutions
- Reduces cabling complexity and installation time by centralizing connections in a single, purpose-built module
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Germany, Tunisia |
|---|
| Depth | 102 mm |
|---|
Important Information Attributes
| Persona Type Ids | EU, OM |
|---|---|
| Local Data Status | Publishable |
| Return Indicator | Y |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1901 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 3 |
| Function Option | Advanced |
| Market Segmentation | Industrial |
| Energy Efficiency Optimized | False |
| Product Or Component Type | connection box |
| Returnability | Yes |
| Height Nominal | 265 mm |
| Nbr. Of Units In Pkg. | 1 |
| Warranty In Months | 18 |
| Persona Type Names | End User, Original Equipment Manufacturer |
|---|---|
| Local Publishable Date | 2026-09-19 |
| Weee Scope | Out |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Without Single Use Plastic | No |
| Tier Id | 3 |
| Function Option Id | ADVANCED |
| Market Segmentation Id | INDUSTRIAL |
| Product Kit Identifier | N |
| Product Availability | Stock - Normally stocked in distribution facility |
| Range Of Product | PacDrive 3 |
| Sustainable Packaging | No |
| Width Nominal | 255 mm |
| Customs Code | 8501514040 |
Environment Attributes Main
| Take Back | No |
|---|---|
| China Rohs Regulation | X |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Without Single Use Plastic | No |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Recycled Metal Content At Cr Level | 0 % |
|---|---|
| Mercury Free | Yes |
| Packaging Made With Recycled Cardboard | No |
| Product Compatibility | integrated drive LXM 62 ILM |
General Attributes
| Product Or Component Type | connection box |
|---|
| Range Of Product | PacDrive 3 |
|---|
ETIM
| ETIM 8 | EC002584 |
|---|---|
| ETIM 10 | EC002584 |
| ETIM 9 | EC002584 |
|---|
