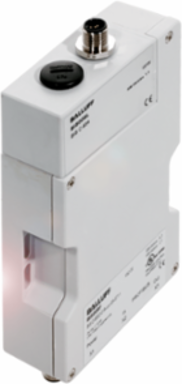

Balluff BIS C-6002-019-654-03-ST11 LF Processor Unit 70/455 kHz, CE Approved, IP65 Rated
- MPN: BIS C-6002-019-654-03-ST11
- PPN: BAL-BIS009F
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
BIS C works with low frequency (LF) and uses two frequencies: 455 kHz for writing and 70 kHz for reading. The processor units process the data recorded by the read heads and relay it to the industrial fieldbus, which communicates with the PLC/PC. With type BIS V processor units, you can operate up to four read heads at once – regardless of whether they are LF, HF or UHF.
Documentation & Downloads
Specifications
Key Specifications
| Product Group | LF (70/455 kHz) |
|---|---|
| Supported RFID technologies | LF 70/455 kHz (BIS C ) |
| Operating voltage Ub | 19.2-28.8 VDC |
| Ambient temperature | 0-60 °C |
| Approval/Conformity | CE, cULus, WEEE |
| Interface | Profibus DP Slavegalvanically isolated |
|---|---|
| Number of connectable R/W heads / antennas | 1 |
| Housing material | ABS |
| IP rating | IP65 with read/write head |
| Connection | Male, 5-pin, B-codedM12x1-Female, 5-pin, B-codedMale, 5-pin |
