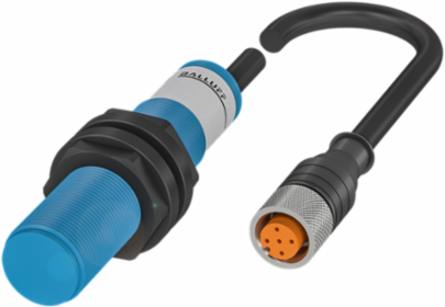

Balluff BIS C-319-PU1-01 LF read/write heads and antennas (70/455 kHz) BIS C-319-PU1-01
- MPN: BIS C-319-PU1-01
- PPN: BAL-BIS0077
CAD
$631.11
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
BIS C works with low frequency (LF) and uses two frequencies: 455 kHz for writing and 70 kHz for reading. Read/write heads are the link between the data carrier and processor unit. They are available in a wide variety of configurations, dimensions – for example, as round/rod antennas. BIS C is established as the standard for tool identification. It can be mounted flush, even directly onto metal.
Documentation & Downloads
Specifications
Key Specifications
| Product Group | LF (70/455 kHz) |
|---|---|
| Installation | metal-free (clear zone) |
| Connection | M12x1-Female, 1.00 m, PU |
| Storage temperature | -20-85 °C |
| IP rating | IP67 |
| Dimension | Ø 18 x 80 mm |
|---|---|
| Antenna type | round |
| Housing material | PBT, Blue, Nuts PA66 black |
| Ambient temperature | 0-70 °C |
| Approval/Conformity | CE, cULus, WEEE |
