nVent Hoffman

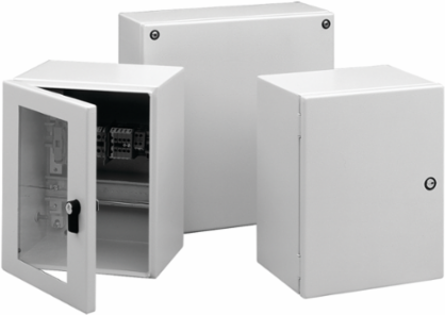

nVent Hoffman LHC252015 InLine Enclosure Hinge Cover Type 4, 250x200x150mm, IP66, Mild Steel

InLine Enclosure Hinge Cover Type 4, 250x200x150mm, IP66, Mild Steel
  • MPN: LHC252015
  • UPC: 783510611002
  • PPN: HOF-LHC252015
  • UNSPSC: 39121303

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$192.77/ EA

Description

Inline offers versatility with Window, hinged or screw cover metric dimensioned enclosures. This InLine Enclosure Hinge Cover Type 4, LHC252015 item measures 250x200x150mm with a material of Steel colored Light Gray.

Features

  • Metric dimensions
  • 16 gauge steel
  • Seams continuously welded and ground smooth
  • External formed body flange channels away liquids
  • Large perimeter body opening
  • Mounting holes in back of body for direct mounting or optional external mounting brackets
  • Seamless foam-in-place gasket
  • Grounding stud on the body
  • Bonding provision on the door
  • Hardware kit includes panel mounting screws, grounding hardware and sealing washers for wall-mounting holes
  • Installation instructions

Specifications

Specifications

BABA
Contact Manufacturer
Width (W)
200
Protection Rating
NEMA Type 12
Finish
Powder Coated
Thickness (T)
1.52
Mounting (G x H)
232 x 135
Weight
6.6
Material
Steel
Color
LtGray
Height (H)250
Depth (D)150
Product FamilyInLine
Color CodeRAL 7035
NEMA Rating4 Watertight
IP RatingIP66
Sub BrandInLine
Size250x200x150mm
