nVent Hoffman A543214CTLAE Quick-Release Hinge-Cover with Steel Panel, 54x32x14, Gray, Steel
- MPN: A543214CTLAE
- UPC: 783510393649
- PPN: HOF-A543214CTLAE
- UNSPSC: 39121319
CAD
$1523.85
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

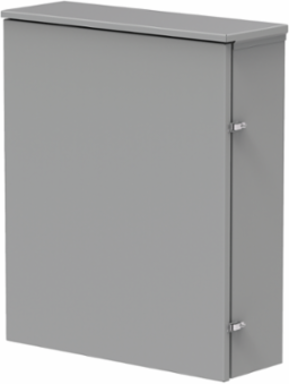

QR Hinge-Cvr enclosure provides instrument current transformers protection for watt-hour metering. This Quick-Release Hinge-Cover with Steel Panel, A543214CTLAE item measures 54x32x14 inches with a material of Steel colored Gray.
Features
- Provisions for padlocking on draw-pull catch
- Welded hinge and pin for non-removable door
- Includes 12 gauge white painted steel panel
- Drip shield top and seam-free sides
- Includes optional handle kit
- Embossed mounting holes on back of enclosure
- Grounding provisions on door and body
- No knockouts
Documentation & Downloads
Specifications
Key Specifications
| BABA | Contact Manufacturer |
|---|---|
| Width (W) | 813 |
| Protection Rating | NEMA Type 3R |
| Color Code | ANSI 61 |
| Weight | 169.64 |
| Size | 54.00 x 32.00 x 14.00 inch |
| Construction | Quick Release Latches | Drip Shield | With Panel |
| Mounting | Yes |
| Number of Outlet | 0 |
| Height (H) | 1,372 |
|---|---|
| Depth (D) | 356 |
| Finish | Galvanized |
| Thickness (T) | 1.9 |
| Material | Mild Steel |
| Color | ANSI 61 Gray |
| Cable Entry | No |
| NEMA Rating | 3R |
| Insulation | No |
