Weidmuller 1137870000 LHZ-SMT L 1.5SN BK BX

MPN: 1137870000
PPN: WDM-1137870000

$2.13

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

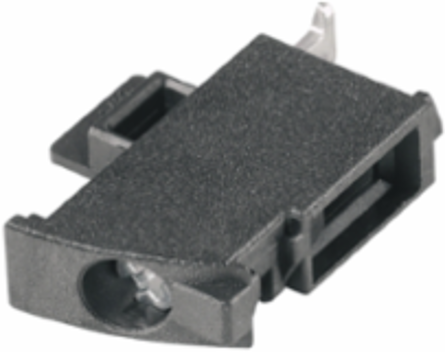

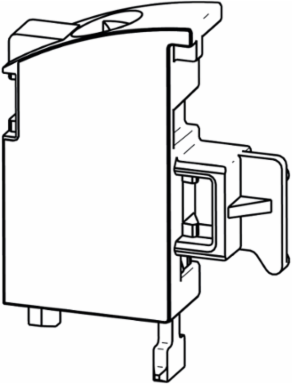

Printed circuit board terminals, Connection element, left, block assembly, closed side, THT/THR solder connection, Number of poles: 1, Solder pin length (l): 1.5 mm, tinned, black, Box

Documentation & Downloads

Specifications

System Characteristics

Version	Connection element, left
Number of connections	1
Solder pin length (l)	1.5 mm
Contact to terminal rail	No

Type of connection	Clamping yoke connection
PCB thickness	0.8 mm
Type of contact to PCB	Reflow
Protection degree	IP20

Approvals

Approvals	cURus, EAC
UL File Number Search	E60693

ROHS	Conform

Dimensions And Weights

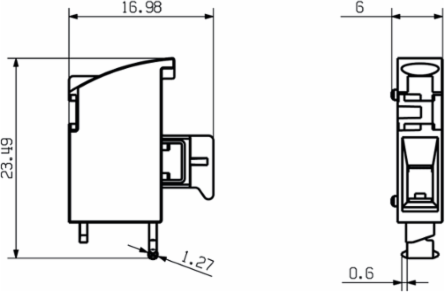

Length	23.5 mm
Width	6 mm
Height	16.9 mm
Net weight	2.27 g

Length (inches)	0.925 inch
Width (inches)	0.236 inch
Height (inches)	0.665 inch

Rated Data Acc. To Iec

tested acc. to standard	IEC 60664-1, IEC 61984

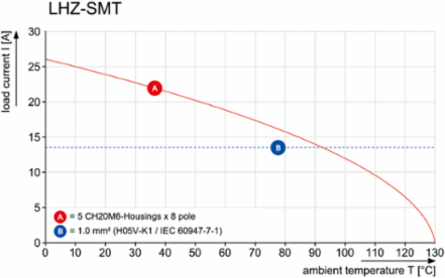

Rated current, max. number of poles (Tu=40°C)	13 A
Rated voltage for surge voltage class / pollution degree III/2	320 V
Rated impulse voltage for surge voltage class/ pollution degree II/2	4 kV
Rated impulse voltage for surge voltage class/ contamination degree III/3	4 kV

Rated current, max. number of poles (Tu=20°C)	13 A
Rated voltage for surge voltage class / pollution degree II/2	500 V
Rated voltage for surge voltage class / pollution degree III/3	250 V
Rated impulse voltage for surge voltage class/ pollution degree III/2	4 kV

Material Data

Insulating material	LCP
Colour chart (similar)	RAL 9011
Comparative Tracking Index (CTI)	≥ 175
Moisture Level (MSL)	1
Contact surface	tinned
Storage temperature, max.	55 °C
Operating temperature, min.	-40 °C
Temperature range, installation, min.	-25 °C

Colour	black
Insulating material group	IIIa
Insulation strength	≥ 108 Ω
UL 94 flammability rating	V-0
Storage temperature, min.	-25 °C
Max. relative humidity during storage	80 %
Operating temperature, max.	120 °C
Temperature range, installation, max.	120 °C

Classifications

ETIM 6.0	EC002643
eClass 9.0	27-44-04-01
eClass 10.0	27-44-04-01

ETIM 7.0	EC002643
eClass 9.1	27-44-04-01

Notes

IPC conformity	Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
