Weidmuller 2418590000 LHZ-SMT R 1.5SN BK RL
- MPN: 2418590000
- PPN: WDM-2418590000
CAD
$4.70
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

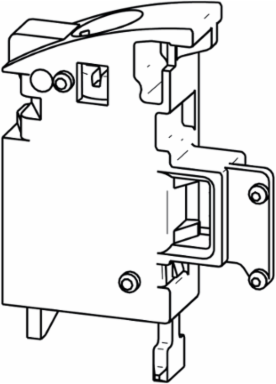

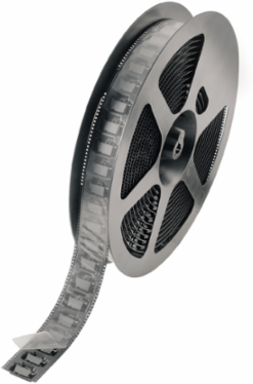

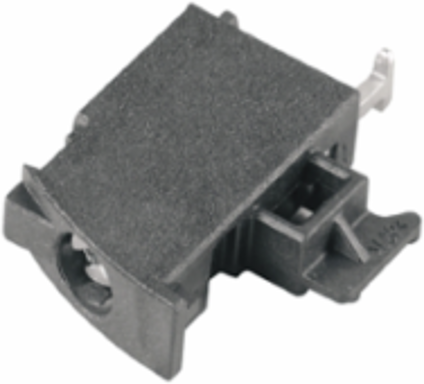

Printed circuit board terminals, Connection element, right, block assembly, closed side, THT/THR solder connection, Number of poles: 1, Solder pin length (l): 1.5 mm, tinned, black, Tape
Documentation & Downloads
Specifications
System Characteristics
- Version
- Connection element, right
- Number of connections
- 1
- Solder pin length (l)
- 1.5 mm
- Contact to terminal rail
- No
Type of connectionClamping yoke connection
PCB thickness0.8 mm
Type of contact to PCBReflow
Protection degreeIP20
Approvals
- Approvals
- cURus, EAC
- UL File Number Search
- E60693
ROHSConform

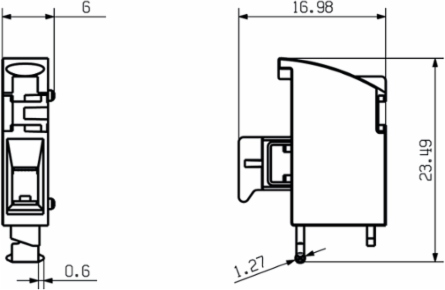

Dimensions And Weights
- Length
- 23.5 mm
- Width
- 6 mm
- Height
- 16.9 mm
- Net weight
- 3.34 g
Length (inches)0.925 inch
Width (inches)0.236 inch
Height (inches)0.665 inch
Rated Data Acc. To Iec
- tested acc. to standard
- IEC 60664-1, IEC 61984
- Rated current, max. number of poles (Tu=40°C)
- 13 A
- Rated voltage for surge voltage class / pollution degree III/2
- 320 V
- Rated impulse voltage for surge voltage class/ pollution degree II/2
- 4 kV
- Rated impulse voltage for surge voltage class/ contamination degree III/3
- 4 kV
Rated current, max. number of poles (Tu=20°C)13 A
Rated voltage for surge voltage class / pollution degree II/2500 V
Rated voltage for surge voltage class / pollution degree III/3250 V
Rated impulse voltage for surge voltage class/ pollution degree III/24 kV
Material Data
- Insulating material
- LCP
- Colour chart (similar)
- RAL 9011
- Comparative Tracking Index (CTI)
- ≥ 175
- Moisture Level (MSL)
- 1
- Contact surface
- tinned
- Storage temperature, max.
- 55 °C
- Operating temperature, min.
- -40 °C
- Temperature range, installation, min.
- -25 °C
Colourblack
Insulating material groupIIIa
Insulation strength≥ 108 Ω
UL 94 flammability ratingV-0
Storage temperature, min.-25 °C
Max. relative humidity during storage80 %
Operating temperature, max.120 °C
Temperature range, installation, max.120 °C
Classifications
- ETIM 6.0
- EC002643
- eClass 9.0
- 27-44-04-01
- eClass 10.0
- 27-44-04-01
ETIM 7.0EC002643
eClass 9.127-44-04-01
Notes
- IPC conformity
- Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
