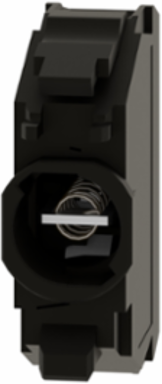

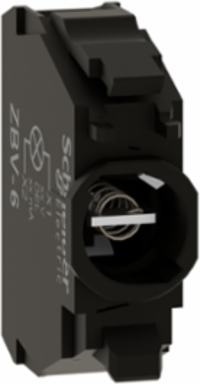

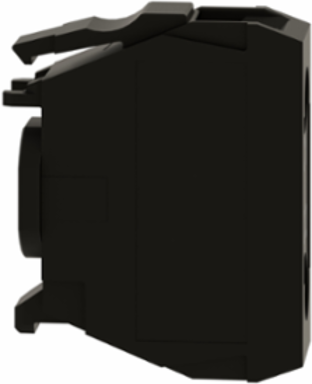

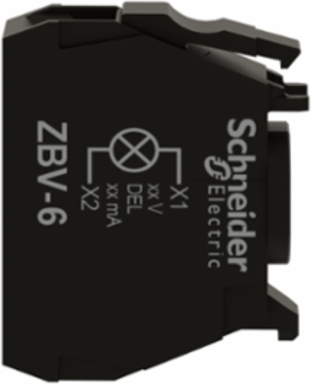

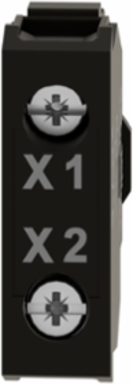

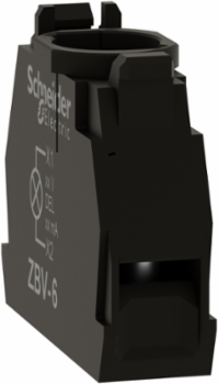

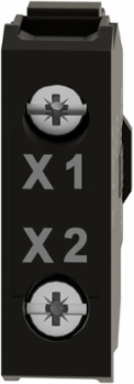

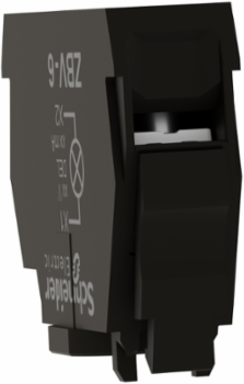

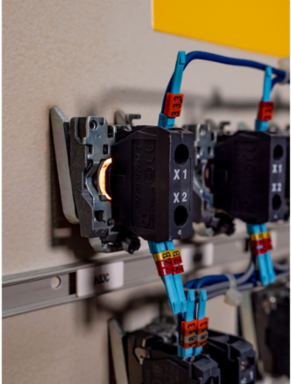

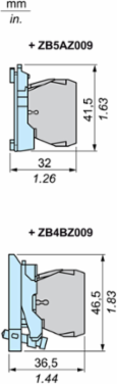

Schneider Electric ZBV6 Harmony XB4 Light Block 22mm for BA9s Bulb, 250V, IP20, 0.016kg
- MPN: ZBV6
- PPN: SCH-ZBV6
CAD
$30.42
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This Harmony ZB, light block without bulb operates with BA9s Base. It is supplied with 250V AC/DC and uses screw-clamp terminals. It has a plastic body. It is compatible with Harmony XB4 and XB5. This light block allows fast and easy replacement and configuration of your signaling units. It is easily installed and replaced on compatible illuminated push-button or selector switch units via clip together assembly and connected with simple screw-clamp connections. It enables visual distinction of signaling units via illumination by connected with BA9s base Integral LED. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. Vibration resistant screw clamp connection terminals ensure high vibration resistance making product suitable installation on high impact machine.
Features
- Engineered for seamless modular integration, this light block clips directly onto both the metal Harmony XB4 and plastic Harmony XB5 series illuminated push-buttons and selector switch heads. This cross-series compatibility allows facility technicians and panel builders to standardize their spare parts inventory, cutting down on warehouse management costs and streamlining emergency maintenance workflows.
- Featuring a highly adaptable BA9s bayonet base socket, this light block allows you to choose your own light source based on your specific application needs. Whether your facility relies on cost-effective incandescent bulbs or swaps to energy-efficient, long-lasting LEDs for low maintenance, this block serves as a highly versatile base that adapts to your signaling preferences.
- Built with a robust direct supply voltage rating of up to 250V AC/DC, this component operates effortlessly across standard industrial, commercial, and automation power arrays. This broad operational threshold minimizes the risk of component burnout caused by unexpected line voltage spikes, keeping your critical pilot lights and HMI control setups reliably active.
- Outfitted with high-torque, vibration-resistant screw-clamp terminals, the unit establishes an exceptionally tight electrical contact that eliminates the risk of wire backing out. This specialized design ensures continuous, un-interrupted signaling performance when mounted inside heavy machinery, manufacturing lines, or processing equipment subjected to constant, high-impact movement.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France, United States
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Electrical Composition Code
- M7, M8, MF2, P3, PF2
- Shape Of Screw Head
- cross Philips no 1, cross pozidriv No 1slotted flat Ø 4 mm, slotted flat Ø 5.5 mm
- Certificate Agency
- CSA, UL Listed
- Carbon Footprint Of The Distribution Phase [A4]
- 0.0027935795, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.0064032745, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- kg CO2 eq., 0
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- N
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2302007EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Average Percentage Of Recycled Metal Content
- 10 %
- Bulb Base
- BA 9s
- Device Short Name
- ZBV
- Light Block Supply
- direct
- Mounting Of Block
- front mounting
- Product Or Component Type
- light block
- Resistance To Electromagnetic Fields
- 10 V/m IEC 61000-4-3
- Resistance To Fast Transients
- 2 kV IEC 61000-4-4
- Sale Per Indivisible Quantity
- 5
- Software Version
- v5.9.4
- Sustainable Packaging
- Yes
- Total Lifecycle Carbon Footprint
- 0.1 kg CO2 eq.
- Connections Terminals 8 Connections Terminals
- screw clamp terminals
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- Light blocks that attach to the back of a push button and serve as an indicator light. When the push button is pressed, the light blocks turn on and illuminate through the button head with a 30% utilisation rate and power consumption is 4.56W, and the product has a life of 10 years while adhering to standards IEC 61000-4-5 and IEC 60947-5-5.
- Functional-unit Unit
- Unit
- Energy Model - Manufacturing [A1-a3]
- Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR / Electricity Mix; Production mix; Low voltage; AUS
- Recyclability Potential In %
- 15
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8531809051
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Range Of ProductHarmony XB5, Harmony XB4
Signalling Typesteady, steady
[Us] Rated Supply Voltage<= <=, 250 V
Carbon Footprint Of The End-of-life Phase [C1 To C4]0 kg CO2 eq., 0.009176244
Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.1 kg CO2 eq., 0.0748250401
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Average Percentage Of Recycled Plastic Content30 %
Compatibility CodeZBV
Electromagnetic Emissionclass B IEC 55011
Light Sourcebulb not included
Product AvailabilityStock - Normally stocked in distribution facility
Protective TreatmentTH
Resistance To Electrostatic Discharge6 kV on contact (on metal parts) IEC 61000-4-28 kV in free air (in insulating parts) IEC 61000-4-2
ReturnabilityYes
Service Life100000 h at rated voltage and 25 °C
Supply Voltage250 V
Tightening Torque0.8-1.2 N.m IEC 60947-1
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Pep Code"ENVPEP2302007EN"
Pep Verification Date2023-04-01
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR / Electricity Mix; Production mix; Low voltage; AUS
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR / Electricity Mix; Production mix; Low voltage; AUS
Connections - Terminalsscrew clamp terminals, = 1 x 0.22 mm² without cable end IEC 60947-1
Package Weight(Lbs)8.400 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -40-70 °C, -40-70 °C
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 0.093198138
- Environmental Disclosure
- "ENVPEP2302007EN"
- Ip Degree Of Protection
- IP20 IEC 60529
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- "ENVPEP2302007EN"
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Recycled Metal Content At Cr Level10 %
Mercury FreeYes
Circularity ProfileENVEOLI2302007EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2023-04-01
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Range Of Product
- Harmony XB5, Harmony XB4
Product Or Component Typelight block
ETIM
- ETIM 8
- EC000204
ETIM 9EC000204
