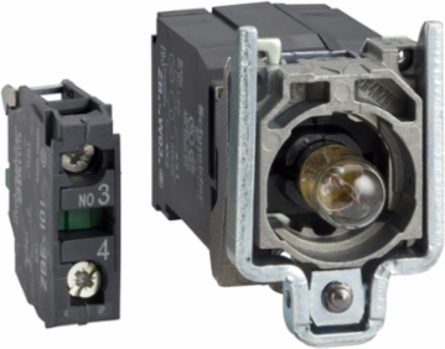

Schneider Electric ZB4BW031 Complete body/contact assembly and light block, Harmony XB4, with body/fixing collar, BA9s incandescent bulb, 110...120V, 1NO

Complete body/contact assembly and light block, Harmony XB4, with body/fixing collar, BA9s incandescent bulb, 110...120V, 1NO

MPN: ZB4BW031
PPN: SCH-ZB4BW031

Spec sheet

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

Available to Order

Company Stock:

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$121.65/ EA

Qty:

Loading add to cart quantity...

Description

This Harmony XB4, light block with body/fixing collar isoperates with BA9s base Integral LED. It has 1 x NO contact and a metal body and is compatible with Harmony XB4 pilot lights. This light block allows fast and easy replacement and configuration of your signaling units. It is easily installed and replaced on compatible illuminated push button or selector switch units via clip together assembly and connected with simple screw-clamp connections. It enables visual distinction of signaling units via illumination by BA9s base Integral LED. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. It is designed to fit with a standard 22mm control and signaling units, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 55°C allows versatility in usage of product.

Specifications

Environment

Product Certifications: CSA || DNV || GL || BV || LROS (Lloyds register of shipping) || UL listed

Standards: IEC 60947-5-4 || CSA C22.2 No 14 || IEC 60947-1 || UL 508 || JIS C8201-5-1 || IEC 60947-5-5 || IEC 60947-5-1 || JIS C8201-1

Vibration Resistance: 5 gn 2-500 Hz)IEC 60068-2-6

Electrical Shock Protection Class: class I IEC 60536

Ambient Air Temperature For Operation-40-70 °C

Shock Resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Ambient Air Temperature For Storage-40-70 °C

Protective TreatmentTH

Contractual warranty

Warranty: 18 months

Offer Sustainability

Rohs Exemption Information: Yes

Environmental Disclosure: ENVPEP1808008EN

Reach Regulation: Reference contains Substances of Very High Concern above the threshold

China Rohs Regulation: X

Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)

Mercury FreeYes

Sustainable Offer StatusGreen Premium product

WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Circularity ProfileENVEOLI1808008EN

Complementary

Contacts Usage: standard

Operating Force: 2.3 N NO changing electrical state

Operating Travel: 2.6 mm NO changing electrical state) || 4.3 mm total travel)

Positive Opening: without

Net Weight: 0.141 kg

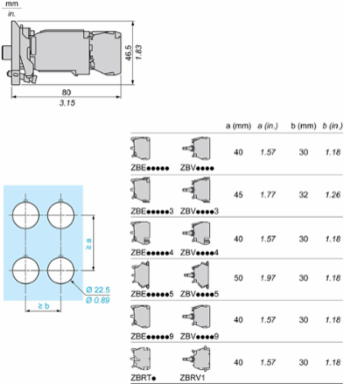

Cad Overall Height: 47 mm

Electrical Durability: 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C

Signalling Type: steady

[Ie] Rated Operational Current: 3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1

Electrical Reliability: λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4

Cad Overall Width: 30 mm

Terminals Description Iso N°1(13-14)NO

Short-Circuit Protection10 A cartridge fuse gG IEC 60947-5-1

Contacts Materialsilver alloy (Ag/Ni)

[Ith] Conventional Free Air Thermal Current10 A IEC 60947-5-1

[Uimp] Rated Impulse Withstand Voltage6 kV IEC 60947-1

Device Presentationbasic sub-assemblies

[Ui] Rated Insulation Voltage600 V 3)IEC 60947-1

Operating Torque0.05 N.m NO changing electrical state

Mechanical Durability5000000 cycles

Tightening Torque0.8-1.2 N.m IEC 60947-1

Shape Of Screw Headcross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm

Key Specifications

Range Of Product: Harmony XB4

Light Block Supply: via integral transformer 1.2 VA 6 V

Fixing Collar Material: zamak

Connections - Terminals: screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
