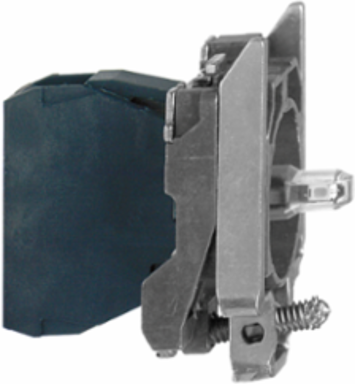

Schneider Electric ZB4BVG4 Light block with body fixing collar, Harmony XB4, metal, red, integral LED, 110…120V AC
Schneider Electric ZB4BVG4 Light block with body fixing collar, Harmony XB4, metal, red, integral LED, 110…120V AC
- MPN: ZB4BVG4
- PPN: SCH-ZB4BVG4
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$56.40/ EA
Description
This Harmony XB4, light block with body/fixing collar is red, operates with an integral LED. It has a metal body and is compatible with Harmony XB4 pilot lights. This light block allows fast and easy replacement and configuration of your signaling units. It is easily installed and replaced on compatible illuminated push button or selector switch units via clip together assembly and connected with simple screw-clamp connections. It enables visual distinction of signaling units via illumination by integral LED. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. It is designed to fit with a standard 22mm control and signaling units, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 55°C allows versatility in usage of product.
Specifications
Specifications
- Range Of Product
- Harmony XB4
- Product Or Component Type
- complete body/light block assembly
- Connections - Terminals
- screw clamp terminals, <= 2 x 1.5 mm² with cable end || screw clamp terminals, >= 1 x 0.22 mm² without cable end
- Light Source Colour
- red
- [Us] Rated Supply Voltage
- 110...120 V AC 50/60 Hz
Light Sourceprotected LED
Fixing Collar Materialzamak
Sale Per Indivisible Quantity1
Device Short NameZB4
Bulb Baseintegral LED
Contractual warranty
- Warranty
- 18 months
Complementary
- Terminals Description Iso N°1
- (X1-X2)PL
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV EN 60947-1
- Current Consumption
- 14 mA
- Service Life
- 100000 h at rated voltage and 25 °C
- [Ui] Rated Insulation Voltage
- 600 V 3)EN 60947-1
- Tightening Torque
- 0.8-1.2 N.m EN 60947-1
- Cad Overall Depth
- 37 mm
Net Weight0.054 kg
Cad Overall Height47 mm
Device Presentationbasic sub-assemblies
Surge Withstand1 kV IEC 61000-4-5
Signalling Typesteady
Cad Overall Width30 mm
Shape Of Screw Headcross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1808008EN
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
- Circularity Profile
- ENVEOLI1808008EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach Free Of SvhcYes
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Environment
- Product Certifications
- CSA || BV || GL || LROS (Lloyds register of shipping) || DNV || UL listed
- Resistance To Electromagnetic Fields
- 10 V/m IEC 61000-4-3
- Shock Resistance
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Ambient Air Temperature For Storage
- -40-70 °C
- Electrical Shock Protection Class
- class I IEC 60536
- Resistance To Fast Transients
- 2 kV IEC 61000-4-4
Ambient Air Temperature For Operation-40-70 °C
StandardsCSA C22.2 No 14 || EN/IEC 60947-1 || EN/IEC 60947-5-1 || EN/IEC 60947-5-4 || UL 508 || EN/IEC 60947-5-5 || JIS C8201-5-1 || JIS C8201-1
Vibration Resistance5 gn 2-500 Hz)IEC 60068-2-6
Resistance To Electrostatic Discharge6 kV on contact (on metal parts) IEC 61000-2-6 || 8 kV in free air (in insulating parts) IEC 61000-2-6
Protective TreatmentTH
Electromagnetic Emissionclass B IEC 55011
