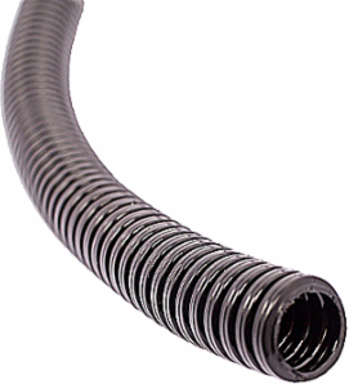

Harnessflex CTPA12/OR/100M Lightweight Conduit

MPN: CTPA12/OR/100M
UPC: 786210286273
PPN: T-B-CTPA12/OR/100M

$327.02

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Lightweight Weight, Extra Flexible Conduit, NC Size 12/NW Size 10, Outside Diameter 13.0mm, Inside Diameter 10.1mm, Static Bend Radius 20mm, High Fatigue Life and Abrasion, Impact Resistance, IP40 Rating, Polyamide 6, Reel Length 100 Meters, Orange

Specifications

European Specifications (ETIM)

ETIM	EC001175 Corrugated plastic hose
Nominal size in inch	5/16 inch
Inner diameter	10.1mm
Operating temperature	-40-+120°C
Fire resistance in accordance with UL94	HB
Colour	Orange
Bending strength	Flexible
Halogen free	Y

Nominal diameter	12mm
Outer diameter	13mm
Material	Polyamide 6
Degree of protection (IP)	IP40
UV resistant	Y
Sheathing material	Not sheathed
Lengthwise slotted	N

North American Specifications (UNSPSC)

UNSPSC	39131706 Electrical conduit
Brand Name	Harnessflex
Special Features	Self Extinguishing, Low Smoke Toxicity & Halogen Free
Standard	RoHS, Conforms with end of life vehicle directive (ELV)EU200/53/EC
Outside Diameter	13.0mm
Length	100 m
Flexibility	High
Color	Orange

IGCC	5540 Flexible Non-Metallic Conduit
Type	Lightweight Conduit
Application	General Purpose, Lightweight Loom Applications
Trade Size	NC12/NW10
Inside Diameter	10.1mm
Radius	Static Bend Radius 20mm
Material	Polyamide/Nylon 6
