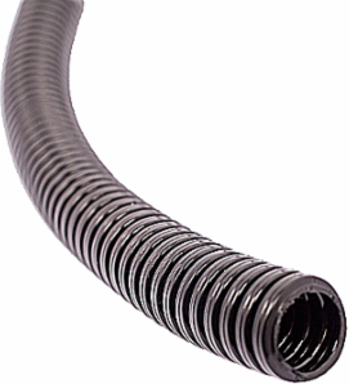

Harnessflex CTPA12-S/100M Slit Lightweight Conduit
Harnessflex CTPA12-S/100M Slit Lightweight Conduit
- MPN: CTPA12-S/100M
- PPN: T-B-CTPA12-S/100M
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$352.00/ EA
Description
Lightweight Weight, Extra Flexible Slit Conduit, NC Size 12/NW Size 10, Outside Diameter 13.0mm, Inside Diameter 10.1mm, Static Bend Radius 20mm, High Fatigue Life and Abrasion, Impact Resistance, IP40 Rating, Polyamide 6, Reel Length 100 Meters, Black
Specifications
Packaging
- Inner Quantity
- 1
- Outer Quantity
- 10
- Weight Uom
- 6.36 lbs. Each
Inner Dimensions (inches)17x37x17
Outer Dimensions (inches)17x37x17
North American Specifications (UNSPSC)
- UNSPSC
- 39131706 Electrical conduit
- Brand Name
- Harnessflex
- Special Features
- Self Extinguishing, Low Smoke Toxicity & Halogen Free
- Standard
- RoHS, Conforms with End of Life Vehicle Directive (ELV)EU200/53/EC
- Outside Diameter
- 13.0mm
- Length
- 100 m
- Flexibility
- High
- Color
- Black
IGCC5540 Flexible Non-Metallic Conduit
TypeSlit Lightweight Conduit
ApplicationGeneral Purpose, Lightweight Loom Applications
Trade SizeNC12/NW10
Inside Diameter10.1mm
RadiusStatic Bend Radius 20mm
MaterialPolyamide/Nylon 6
European Specifications (ETIM)
- ETIM
- EC001175 Corrugated plastic hose
- Nominal size in inch
- 5/16 inch
- Inner diameter
- 10.1mm
- Operating temperature
- -40-+120°C
- Fire resistance in accordance with UL94
- HB
- Colour
- Black
- Bending strength
- Flexible
- Halogen free
- Y
Nominal diameter12mm
Outer diameter13mm
MaterialPolyamide 6
Degree of protection (IP)IP40
UV resistantY
Sheathing materialNot sheathed
Lengthwise slottedY
