Slit Lightweight Conduit
Harnessflex

Harnessflex CTPA08-S/100M Slit Lightweight Conduit

  • MPN: CTPA08-S/100M
  • UPC: 786210147918
  • PPN: T-B-CTPA08-S/100M

CAD

$299.43

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

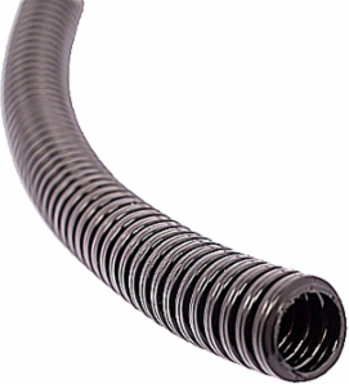

Lightweight Weight, Extra Flexible Slit Conduit, NC Size 08/NW Size 7.5, Outside Diameter 10.0mm, Inside Diameter 6.5mm, Static Bend Radius 10mm, High Fatigue Life and Abrasion, Impact Resistance, IP40 Rating, Polyamide 6, Reel Length 100 Meters, Black

Specifications

Packaging

Inner Quantity
1
Outer Quantity
15
Weight Uom
3.75 lbs. Each
Inner Dimensions (inches)24.5x24.5x50
Outer Dimensions (inches)17x37x17

North American Specifications (UNSPSC)

UNSPSC
39131706 Electrical conduit
Brand Name
Harnessflex
Special Features
Self Extinguishing, Low Smoke Toxicity & Halogen Free
Standard
RoHS, Conforms with End of Life Vehicle Directive (ELV)EU200/53/EC
Outside Diameter
10.0mm
Length
100 m
Flexibility
High
Color
Black
IGCC5540 Flexible Non-Metallic Conduit
TypeSlit Lightweight Conduit
ApplicationGeneral Purpose, Lightweight Loom Applications
Trade SizeNC08/NW7.5
Inside Diameter6.5mm
RadiusStatic Bend Radius 10mm
MaterialPolyamide/Nylon 6

European Specifications (ETIM)

ETIM
EC001175 Corrugated plastic hose
Nominal size in inch
1/8 inch
Inner diameter
6.5mm
Operating temperature
-40-+120°C
Fire resistance in accordance with UL94
HB
Colour
Black
Bending strength
Flexible
Halogen free
Y
Nominal diameter8mm
Outer diameter10mm
MaterialPolyamide 6
Degree of protection (IP)IP40
UV resistantY
Sheathing materialNot sheathed
Lengthwise slottedY
