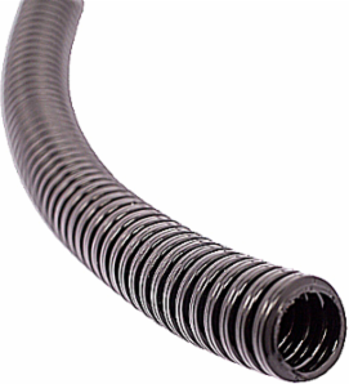

Harnessflex CTPA10-S/100M Slit Lightweight Conduit
Harnessflex CTPA10-S/100M Slit Lightweight Conduit
- MPN: CTPA10-S/100M
- UPC: 5020963022692
- PPN: T-B-CTPA10-S/100M
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$309.25/ EA
Description
Lightweight Weight, Extra Flexible Slit Conduit, NC Size 10/NW Size 8.5, Outside Diameter 10.0mm, Inside Diameter 8.7mm, Static Bend Radius 15mm, High Fatigue Life and Abrasion, Impact Resistance, IP40 Rating, Polyamide 6, Reel Length 100 Meters, Black
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39131706 Electrical conduit
- Brand Name
- Harnessflex
- Special Features
- Self Extinguishing, Low Smoke Toxicity & Halogen Free
- Standard
- RoHS, Conforms with End of Life Vehicle Directive (ELV)EU200/53/EC
- Outside Diameter
- 10.0mm
- Length
- 100 m
- Flexibility
- High
- Color
- Black
IGCC5540 Flexible Non-Metallic Conduit
TypeSlit Lightweight Conduit
ApplicationGeneral Purpose, Lightweight Loom Applications
Trade SizeNC10/NW8.5
Inside Diameter8.7mm
RadiusStatic Bend Radius 15mm
MaterialPolyamide/Nylon 6
European Specifications (ETIM)
- ETIM
- EC001175 Corrugated plastic hose
- Nominal size in inch
- 1/4 inch
- Inner diameter
- 8.7mm
- Operating temperature
- -40-+120°C
- Fire resistance in accordance with UL94
- HB
- Colour
- Black
- Bending strength
- Flexible
- Halogen free
- Y
Nominal diameter10mm
Outer diameter10mm
MaterialPolyamide 6
Degree of protection (IP)IP40
UV resistantY
Sheathing materialNot sheathed
Lengthwise slottedY
Packaging
- Outer Quantity
- 1
- Weight Uom
- 4.51 lbs. Each
Outer Dimensions (inches)1x1x1
