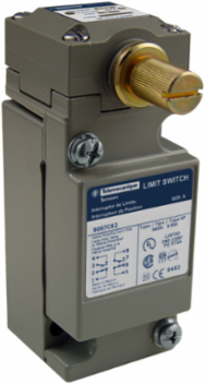

Telemecanique Sensors 9007C62BY247 NEMA limit switch, 9007C, heavy duty, standard, spring return lever, standard pretravel, 10A, 600V, 2NO/2NC, NEMA 4, 13
Telemecanique Sensors 9007C62BY247 NEMA limit switch, 9007C, heavy duty, standard, spring return lever, standard pretravel, 10A, 600V, 2NO/2NC, NEMA 4, 13
- MPN: 9007C62BY247
- UPC: 785901116042
- PPN: TES-9007C62BY247
- UNSPSC: 39122213
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$317.88/ EA
Description
These industrial heavy duty limit switches are applied in almost any environments. The lever head switches have the largest diameter shaft in the industry. They also have a Viton Quadring shaft seal to ensure positive head and shaft sealing that is dust and watertight. This standard differential lever head limit switch has a standard body and receptacle which is good for most applications. Limit switch has two normally open and two normally closed contacts. The snap action contacts will change state when the lever arm in operated in the clockwise direction. Contacts have an A600 and Q600 inductive ratings and 10A resistive rating. This standard differential rotary arm head has a differential of 4 degrees of travel. The proper lever arm for the application must be purchased separately. This limit switch is 4.02 inches tall, 1.55 inches wide and 2.50 inches deep. This limit switch is NEMA 1, 2 4, 6, 6P, 12 and 13 rated. It is also rated IP67. Switch has a 0.50 inch conduit entry with 14 NPT. This limit switch has a smaller shaft diameter so it can accommodate lever arms from the Denison limit switch line. Limit switch is UL listed and CSA certified. The 9007 series limit switches are designed to withstand harsh industrial environments and are available in a wide range of options.
Specifications
Complementary
- Product Certifications
- CSA || CE || UL listed
- [Ui] Rated Insulation Voltage
- 600 V
- [Ie] Rated Operational Current
- 10 A, A600 || 10 A, Q600
- Body Material
- zinc alloy
- Contact Form
- Form ZZ
- Minimum Torque For Tripping
- 4 lbf.in
- Provided Equipment
- receptacle
Maximum Displacement Angle90 °
Tripping Angle4 °
Contacts Materialsilver alloy (Ag/Ni)
[Ithe] Conventional Enclosed Thermal Current10 A
Switch FunctionSPDT-DB
Local Signallingwithout pilot light
Offer Sustainability
- Environmental Disclosure
- ENVPEP111160EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Eu Rohs DirectiveNot applicable, out of EU RoHS legal scope
Specifications
- Switch Actuation
- CW
- Contacts Type And Composition
- 2 NO/2 NC
- Contact Operation
- snap action
- Device Short Name
- C
- Head Type
- turret head rotary lever
Series Nameheavy duty
Range Of Product9007
Cable EntryNPT conduit entry 0.5-0.5 in
Type Of Operatorspring return lever arm standard pre-travel) to be ordered separately || drive shaft reduced diameter to 0.306 in)lever arm
Environment
- Ambient Air Temperature For Operation
- -20-185 °F
