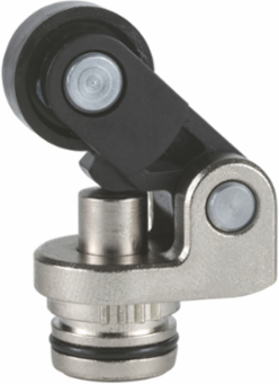

Telemecanique Sensors ZCE28 Limit switch head, Limit switches XC Standard, ZCE, roller lever plunger horizontal or vertical direction
- MPN: ZCE28
- PPN: TES-ZCE28
- UNSPSC: 39122213
CAD
$47.88
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This product is part of the XC Standard range, an offer of limit switches. This limit switch head provides switch actuation by 30° cam with positive opening operation. The thermoplastic spring return roller lever plunger supports lateral or vertical approach in 1 direction. The movement of limit switch operating head is linear. It is intended for all industrial machine applications such as packaging, materials handling, conveying, machining, food and beverage, service sector, etc. It is compatible with XCKP, XCKT, XCMD and XCKD limit switches, and various ZC bodies. Limit switches for contact sensing of inflexible objects. High quality of products and worldwide availability guarantee in a short delivery time. A comprehensive offer of contacts for a simpler and safer machine design. Ex OsiSwitch, IEC standard format limit switches consist of products designed according to EN 50047, EN 50041 as well as popular XCM and XCKM miniature and classic limit switches ranges.
Documentation & Downloads
Specifications
Key Specifications
| Movement Of Operating Head | linear |
|---|---|
| Type Of Operator | roller lever plunger spring return thermoplastic |
| Associated Body | ZCMD21C12 || ZCMD21L08U78 || ZCMD25L5 || ZCT21G11 || ZCMD41L1 || ZCT27P16 || ZCD29M12 || ZCD21 || ZCP37 || ZCMD41L2 || ZCD25 || ZCMD21L5 || ZCMD39L1 || ZCP27 || ZCP35 || ZCP28 || ZCT28G11 || ZCT26N12 || ZCD39 || ZCT25G11 || ZCMD39L5 || ZCT21P16 || ZCP25 || ZCMD81L1 || ZCD31 || ZCT28P16 || ZCMD81L5 || ZCMD69C12 || ZCT27N12 || ZCD21M12 || ZCT25N12 || ZCD26 || ZCP21M12 || ZCP39 || ZCMD25L1 || ZCT25P16 || ZCT21N12 || ZCP29 || ZCMD37L2 || ZCMD61C12 || ZCD28 || ZCD37 || ZCT26G11 || ZCP21 || ZCMD81L2 || ZCMD37L1 || ZCMD25L2 || ZCP29M12 || ZCMD29L1 || ZCMD37L5 || ZCMD41L5 || ZCMD21M12 || ZCT28N12 || ZCT26P16 || ZCMD21L08R12 || ZCMD21L1 || ZCP26 || ZCD27 || ZCMD29L2 || ZCT27G11 || ZCMD39L2 || ZCMD61M12 || ZCP31 || ZCD35 || ZCMD21L2 || ZCMD29C12 || ZCMD29L5 || ZCD29 |
| Type Of Approach | lateral or vertical approach, 1 direction |
| Product Compatibility | XCMD || XCKT || XCKP || XCKD |
| Range Of Product | Telemecanique Limit switches XC Standard |
|---|---|
| Product Or Component Type | limit switch head |
| Head Type | plunger head |
| Series Name | standard format |
| Device Short Name | ZCE |
Complementary
| Switch Actuation | by 30° cam |
|---|
| Positive Opening | with |
|---|
Environment
| Ambient Air Temperature For Operation | -25-70 °C |
|---|---|
| Environmental Characteristic | standard environment |
| Ambient Air Temperature For Storage | -40-70 °C |
|---|
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| Rohs Exemption Information | Yes |
|---|---|
| Environmental Disclosure | ENVPEP110614EN |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury Free | Yes |
|---|---|
| Sustainable Offer Status | Green Premium product |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
