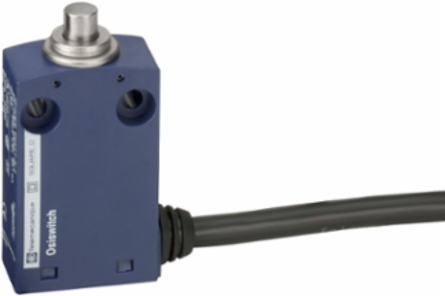

Telemecanique Sensors XCMN2910L1 Limit switch, Limit switches XC Standard, XCMN, metal end plunger, 2NC, snap, 1 m

MPN: XCMN2910L1
PPN: TES-XCMN2910L1
UNSPSC: 39122213

$92.57

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Limit switch, Limit switches XC Standard, XCMN, metal end plunger, 2NC, snap, 1 m

Documentation & Downloads

Specifications

Key Specifications

Movement Of Operating Head	linear
Fixing Mode	by the body
Sensor Design	miniature
Head Material	zamak
Head Type	plunger head
Series Name	standard format
Body Type	fixed
Body Material	plastic
Number Of Poles	2

Range Of Product	Telemecanique Limit switches XC Standard
Type Of Operator	spring return plunger metal
Product Or Component Type	limit switch
Material	plastic
Type Of Approach	vertical approach, 1 direction
Contacts Type And Composition	2 NC
Contact Operation	snap action
Device Short Name	XCMN

Complementary

Height	60-60 mm
Minimum Actuation Speed	0.01 m/min
Cable Length	1 m
[Uimp] Rated Impulse Withstand Voltage	4 kV IEC 60664 \|\| 4 kV IEC 60947-1
[Ui] Rated Insulation Voltage	300 V 3)UL 508 \|\| 400 V 3)IEC 60947-5-1 \|\| 300 V 3)CSA C22.2 No 14
Positive Opening Minimum Force	42.5 N
Contacts Insulation Form	Zb
Maximum Actuation Speed	0.5 m/s
Minimum Force For Tripping	8.5 N
Contact Code Designation	B300, AC-15 (Ue = 240 V), Ie = 1.5 A EN/IEC 60947-5-1 appendix A \|\| R300, DC-13 (Ue = 250 V), Ie = 0.1 A EN/IEC 60947-5-1 appendix A
Depth	16 mm

Short-Circuit Protection	6 A cartridge fuse gG
Electrical Connection	fixed cable
Net Weight	0.08 kg
Switch Actuation	on end
Electrical Durability	5000000 cycles, DC-13, 120 V, 1 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C \|\| 5000000 cycles, DC-13, 24 V, 3 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C \|\| 5000000 cycles, DC-13, 48 V, 2 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
Positive Opening	with
Mechanical Durability	5000000 cycles
Wire Insulation Material	PvR
Cable Composition	4 x 0.75 mm²
Width	30 mm
Maximum Resistance Across Terminals	25 MOhm IEC 60255-7 category 3

Environment

Product Certifications	CCC \|\| UL \|\| CSA
Ambient Air Temperature For Operation	-25-70 °C
Shock Resistance	25 gn 18 ms IEC 60068-2-27
Ip Degree Of Protection	IP65 IEC 60529
Electrical Shock Protection Class	class II IEC 61140 \|\| class II NF C 20-030

Ik Degree Of Protection	IK04 EN 50102
Standards	EN/IEC 60947-5-1 \|\| UL 508 \|\| CSA C22.2 No 14 \|\| EN/IEC 60204-1
Vibration Resistance	5 gn 10-500 Hz)IEC 60068-2-6
Ambient Air Temperature For Storage	-40-70 °C
Protective Treatment	TC

Contractual warranty

Warranty	18 months

Offer Sustainability

Rohs Exemption Information	Yes
Environmental Disclosure	ENVPEP111229EN
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
