Telemecanique Sensors 9007CT54 NEMA limit switch, 9007C, heavy duty, compact, plug in receptacle, 10A, 600V, 2NO/2NC
Telemecanique Sensors 9007CT54 NEMA limit switch, 9007C, heavy duty, compact, plug in receptacle, 10A, 600V, 2NO/2NC
- MPN: 9007CT54
- UPC: 785901500902
- PPN: TES-9007CT54
- UNSPSC: 39122213
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$35.60/ EA
Description

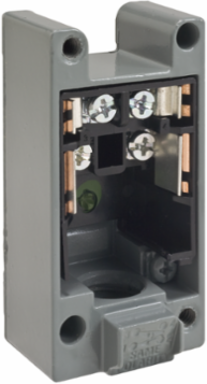

These industrial heavy duty limit switches are applied in almost any environments. This replacement receptacle is for limit switches with a standard plug-in body. Receptacle is for limit switches with one normally open and one normally closed contact. This limit switch receptacle is 3.14 inches tall, 1.55 inches wide and 0.90 inches deep. This receptacle is NEMA 1, 2 4, 6, 6P, 12 and 13 rated when proper assembled with a limit switch body and head. It is also rated IP67. Receptacle has a 0.50 inch conduit entry with 14 NPT. Limit switch receptacle is UL listed and CSA certified. It is compatible with 9007C heavy duty metal limit switches. The 9007C heavy duty metal limit switches, compact and standard, with 39mm plug in bodies or 69mm fixed body for hazardous locations. The 9007 series limit switches are designed to withstand harsh industrial environments and are available in a wide range of options.
Specifications
Environment
- Ambient Air Temperature For Storage
- -20-185 °F
- Electrical Shock Protection Class
- class 0 IEC 61140
- Vibration Resistance
- 25 gn 10-150 Hz)IEC 60068-2-6
- Ip Degree Of Protection
- IP67 IEC 60529
Nema Degree Of ProtectionNEMA 1 Nema type 250 || NEMA 2 Nema type 250 || NEMA 4 Nema type 250 || NEMA 6 Nema type 250 || NEMA 6P Nema type 250 || NEMA 12 Nema type 250 || NEMA 13 Nema type 250
Shock Resistance60 gn 9 ms IEC 60068-2-27
Protective Treatmentepoxy powder coat
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Environmental Disclosure
- ENVPEP111160EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Eu Rohs DirectiveNot applicable, out of EU RoHS legal scope
Complementary
- Height
- 3.14-3.14 in
- Associated Head
- 9007C
- Width
- 1.55 in
- Depth
- 0.9 in
Mechanical Durability10000000 cycles
Body Materialzinc
Associated Connection Component9007CO54
Net Weight0.7 lb(US)
Specifications
- Series Name
- heavy duty
- Body Type
- standard plug-in
- Environmental Characteristic
- standard environment
- Ambient Air Temperature For Operation
- -20-185 °F standard environment
- Product Or Component Type
- limit switch base
- Device Short Name
- 9007C
Sale Per Indivisible Quantity1
Range Of Product9007
Electrical Connectionscrew-clamp terminals AWG 22...AWG 12), 1-2
Cable Entry1 entry for 1/2" - 14 NPT ANSI B1.20.1
Product Compatibility9007C
