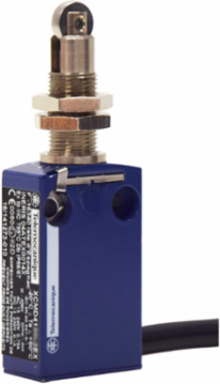

Telemecanique Sensors XCMD41F2L5EX Limit switch, Limit switches XC Standard, XCMD, roller plunger, 2NC + 2 NO, ATEX/IECEx
- MPN: XCMD41F2L5EX
- PPN: TES-XCMD41F2L5EX
CAD
$826.42
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Limit switch, Limit switches XC Standard, XCMD, roller plunger, 2NC + 2 NO, ATEX/IECEx
Documentation & Downloads
Specifications
Key Specifications
- Movement Of Operating Head
- linear
- Electrical Connection
- fixed cable
- Fixing Mode
- by the head
- Sensor Design
- miniature
- Material
- metal
- Head Type
- M12 plunger head
- Type Of Approach
- lateral approach, 2 directions
- Contacts Type And Composition
- 2 x (1 NC + 1 NO)
- Positive Opening
- with
- Contact Operation
- snap action
- Minimum Force For Tripping
- 7 N
- Number Of Poles
- 4
Range Of ProductTelemecanique Limit switches XC Standard
Number Of Steps1
Type Of Operatorspring return roller plunger steel
Product Or Component Typelimit switch
Ip Degree Of ProtectionIP66 IEC 60529 || IP67 IEC 60529
Switch Actuationby 30° cam
Series Namestandard format
Body Typefixed
Contacts Insulation FormZb
Maximum Actuation Speed0.1 m/s
Device Short NameXCMD
Complementary
- Height
- 50-50 mm
- Minimum Actuation Speed
- 0.01 m/min
- Marking
- II2 D-Ex tb IIIC T85°C Db IP66/67
- [Uimp] Rated Impulse Withstand Voltage
- 4 kV IEC 60664 || 4 kV IEC 60947-1
- Electrical Durability
- 5000000 cycles, DC-13, inductive, 24 V, 3 W 3600 cyc/mn 0.5 , DC IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, inductive, 48 V, 2 W 3600 cyc/mn 0.5 , DC IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, inductive, 120 V, 1 W 3600 cyc/mn 0.5 , DC IEC 60947-5-1 appendix C
- Mechanical Durability
- 10000000 cycles
- Wire Insulation Material
- PvR
- Contact Code Designation
- R300, DC-13 (Ue = 250 V), Ie = 0.1 A EN 60947-5-1 || R300, DC-13 (Ue = 250 V), Ie = 0.1 A IEC 60947-5-1 appendix A || C300, AC-15 (Ue = 240 V), Ie = 0.75 A EN 60947-5-1 || C300, AC-15 (Ue = 240 V), Ie = 0.75 A IEC 60947-5-1 appendix A
- Depth
- 16 mm
- Maximum Resistance Across Terminals
- 25 MOhm IEC 60255-7 category 3
Short-Circuit Protection6 A cartridge fuse gG
Cable Length5 m
Head Materialzamak
[Ui] Rated Insulation Voltage300 VUL 508 || 400 V 3)IEC 60947-1 || 300 VCSA C22.2 No 14
Positive Opening Minimum Force35 N
Body Materialzamak
Cable Composition9 x 0.34 mm²
Width30 mm
[Ithe] Conventional Enclosed Thermal Current3 A AC
Environment
- Product Certifications
- INERIS 04ATEX0014X || IEC-Ex INE 17.0020X
- Standards
- EN/IEC 60079-31 || EN/IEC 60079-0
- Shock Resistance
- 25 gn 18 ms IEC 60068-2-27
- Directives
- 2014/34/EU - ATEX directive
- Protective Treatment
- TC
Ambient Air Temperature For Operation-20-60 °C
Dust Zonezone 21 - 22
Vibration Resistance5 gn 10-500 Hz)IEC 60068-2-6
Electrical Shock Protection Classclass I IEC 61140 || class I NF C 20-030
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP110612EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Circularity ProfileENVEOLI110612EN
