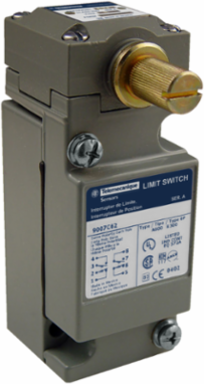

Telemecanique Sensors 9007C62N2 NEMA limit switch, 9007C, heavy duty, standard, spring return lever, low torque, 10A, 600V, 2NO/2NC, NEMA 4, 6P, 12, 13
Telemecanique Sensors 9007C62N2 NEMA limit switch, 9007C, heavy duty, standard, spring return lever, low torque, 10A, 600V, 2NO/2NC, NEMA 4, 6P, 12, 13
- MPN: 9007C62N2
- UPC: 785901856498
- PPN: TES-9007C62N2
- UNSPSC: 39122213
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$374.20/ EA
Description
These industrial heavy duty limit switches are applied in almost any environments. The lever head switches have the largest diameter shaft in the industry. They also have a Viton Quadring shaft seal to ensure positive head and shaft sealing that is dust and watertight. This light operating torque lever arm limit switch has a standard body and receptacle which is good for most applications. Limit switch has two normally open and two normally closed contacts. The snap action contacts will change state when the lever arm in operated in the clockwise or counterclockwise direction. Contacts have an A600 and Q600 inductive ratings and 10A resistive rating. Light operating torque rotary arm head requires only 25 oz-in of force to operate. The proper lever arm for the application must be purchased separately. This limit switch is 4.02 inches tall, 1.55 inches wide and 2.50 inches deep. This limit switch is NEMA 1, 2 4, 6, 6P, 12 and 13 rated. It is also rated IP67. Switch has a 0.50 inch conduit entry with 14 NPT. Limit switch is UL listed and CSA certified. The 9007C heavy duty metal limit switches, compact and standard, with 39mm plug in bodies or 69mm fixed body for hazardous locations. The 9007 series limit switches are designed to withstand harsh industrial environments and are available in a wide range of options.
Specifications
Environment
- Ambient Air Temperature For Storage
- -20-185 °F
- Nema Degree Of Protection
- NEMA 1 Nema type 250 || NEMA 2 Nema type 250 || NEMA 4 Nema type 250 || NEMA 6 Nema type 250 || NEMA 6P Nema type 250 || NEMA 12 Nema type 250 || NEMA 13 Nema type 250
- Electrical Shock Protection Class
- class 0 IEC 61140
- Vibration Resistance
- 25 gn 10-150 Hz)IEC 60068-2-6
- Ip Degree Of Protection
- IP67 IEC 60529
Environmental Characteristicstandard environment
Ambient Air Temperature For Operation-20-185 °F standard environment
Shock Resistance60 gn 9 ms IEC 60068-2-27
Protective Treatmentepoxy powder coat
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Environmental Disclosure
- ENVPEP111160EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Eu Rohs DirectiveNot applicable, out of EU RoHS legal scope
Complementary
- Maximum Displacement Angle
- 90 °
- Terminals Description Iso N°1
- (3-4)NO || (7-8)NO || (1-2)NC || (5-6)NC
- Tripping Angle
- 10 °
- [Ie] Rated Operational Current
- 1.2 A 600 V AC, A600 NEMA || 1.5 A 480 V AC, A600 NEMA || 3 A 240 V AC, A600 NEMA || 6 A 120 V AC, A600 NEMA || 0.11 A 250 V DC, R300 NEMA || 0.55 A 125 V DC, R300 NEMA
- Mechanical Durability
- 10000000 cycles
- Body Material
- zinc
- Contact Form
- Form ZZ
- [Uimp] Rated Impulse Withstand Voltage
- 2.5 kV AC 1 min CE || 2.2 kV AC 1 min UL || 2.64 kV AC 1 s CSA
- Depth
- 2.5 in
- Electrical Durability
- 1000000 cycles
- Repeat Accuracy
- +/- 0.002 in linear travel of cam
Height4.02-4.02 in
[Ui] Rated Insulation Voltage600 V 3)UL 508 contact block || 600 V 3)CSA C22.2 No 14 contact block
Short-Circuit Protection10 A CC non-time delay
Contacts Materialsilver contacts
Maximum Actuation Speed90 ft/min with 45° cam angle, levers only || 130 ft/min with 30° cam angle, levers only
[Ithe] Conventional Enclosed Thermal Current10 A
Switch FunctionDPDT-DB
Width1.55 in
Head Materialzinc
Net Weight1.25 lb(US)
Local Signallingwithout
Specifications
- Switch Actuation
- from left and right || CW and CCW
- Series Name
- heavy duty
- Movement Of Operating Head
- rotary
- Body Type
- plug-in
- Positive Opening
- without
- Contact Operation
- snap action
- Fixing Mode
- by the body
- Product Or Component Type
- limit switch
- Device Short Name
- 9007C
- Number Of Poles
- 2
Type Of Approachlateral approach, 2 programmable directions
Contacts Type And Composition2(NC-NO)
Sale Per Indivisible Quantity1
Range Of Product9007
Electrical Connectionscrew-clamp terminals AWG 22...AWG 12), 1-2
Product Specific Applicationstandard box
Cable Entry1 entry for 1/2" - 14 NPT ANSI B1.20.1
Materialmetal
Type Of Operatorzinc spring return without operating lever low torque)9007C lever
Head Typerotary head
