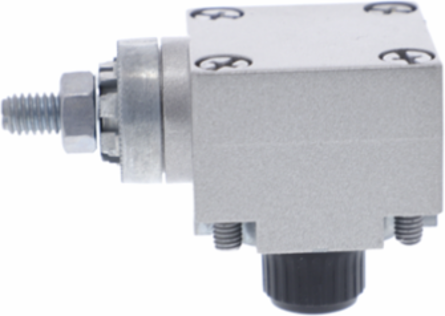

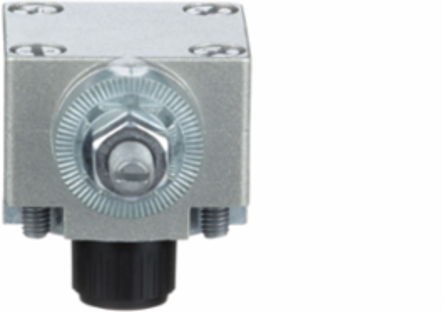

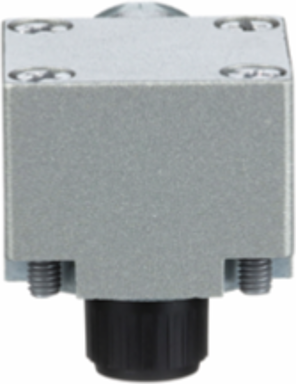

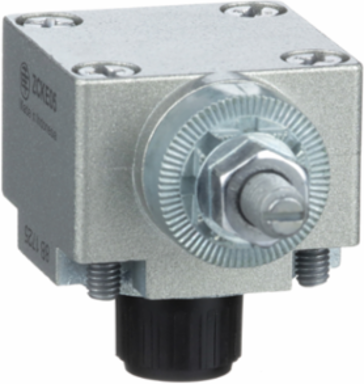

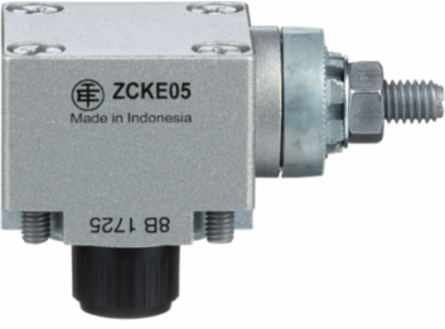

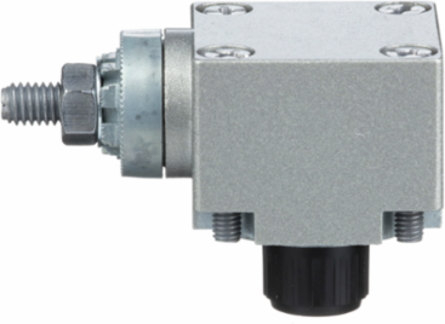

Telemecanique Sensors ZCKE05 Osiswitch, limit switch head, ZCKE, without lever, left and right actuation
Telemecanique Sensors ZCKE05 Osiswitch, limit switch head, ZCKE, without lever, left and right actuation
- MPN: ZCKE05
- PPN: TES-ZCKE05
- UNSPSC: 39122213
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$75.92/ EA
Description
OsiSense XC compact modular metal limit switches meet the European standard (EN50047) for positive opening contacts, even in snap action versions which allow use in safety applications. XCKD range has a wide range of body types, different types of heads, and many limit switch arms that can be purchased as complete limit switches or as subcomponents that can be assemblied by the user to meet their specific requirement. OsiSense XC compact modular metal limit switches are often used in the packaging, materials handling, conveying, machining, food and beverage, service sector, and many more applications. These limit switches are UL Listed, CSA Certified, meet the appropriate IEC standards and are CCC.
Specifications
Environment
- Ambient Air Temperature For Operation
- -25-70 °C
- Environmental Characteristic
- standard environment
Ambient Air Temperature For Storage-40-70 °C
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Environmental Disclosure
- ENVPEP110614EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Switch Actuation
- from left and/or right || CW and/or CCW
- Head Material
- metal
Positive Openingwith
Specifications
- Type Of Approach
- lateral approach, 1 or 2 programmable direction
- Movement Of Operating Head
- rotary
- Associated Lever
- ZCKY91 || ZCKY52 || ZCKY53 || ZCKY11 || ZCKY13 || ZCKY43 || ZCKY51 || ZCKY14 || ZCKY81 || ZCKY41 || ZCKY59
- Product Or Component Type
- limit switch head
- Product Compatibility
- XCKJ
- Head Type
- rotary head
Series Namestandard format
Range Of ProductTelemecanique Limit switches XC Standard
Type Of Operatorwithout operating lever spring return
Associated BodyZCKJD37H7 || ZCKJ5H29 || ZCKJ8H7 || ZCKJ1H29 || ZCKJ8 || ZCKJ7 || ZCKJ41 || ZCKJ6H29 || ZCKJ11H29 || ZCKJ41H29 || ZCKJ11H7 || ZCKJD35H7 || ZCKJD31H7 || ZCKJ9H29 || ZCKJD31H29 || ZCKJ21 || ZCKJD39H7 || ZCKJ9H7 || ZCKJ4H29 || ZCKJD35H29 || ZCKJ6 || ZCKJ11 || ZCKJ5 || ZCKJ7H29 || ZCKJ1H7 || ZCKJ7H7 || ZCKJ9 || ZCKJ8H29 || ZCKJ6H7 || ZCKJ4104H29 || ZCKJD31 || ZCKJ4104H7 || ZCKJ5H7 || ZCKJ2H7 || ZCKJ404H29 || ZCKJD37H29 || ZCKJ4 || ZCKJ21H7 || ZCKJ1 || ZCKJ2H29 || ZCKJD39H29 || ZCKJD37 || ZCKJ2 || ZCKJD35 || ZCKJ41H7 || ZCKJ404 || ZCKJD39 || ZCKJ4104 || ZCKJ21H29 || ZCKJ4H7 || ZCKJ404H7
Device Short NameZCKE
