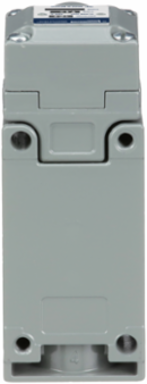

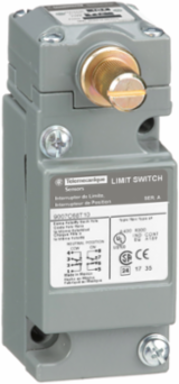

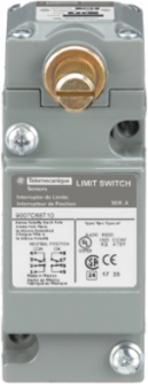

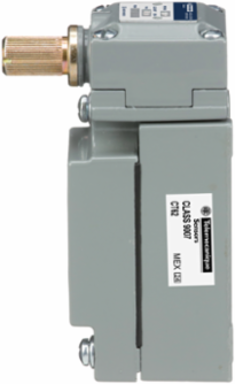

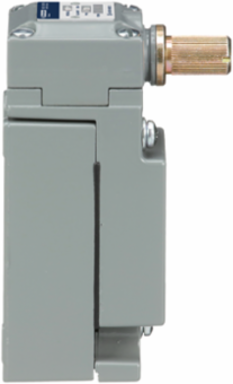

Telemecanique Sensors 9007C68T10 limit switch, 9007C, full body, rotary lever arm head, neutral position, spring return, 2 NO and 2 NC, NEMA 4 and 13

9007C NEMA heavy duty industrial limit switches are designed to meet many domestic and international standards. The metal body of these limit switches can withstand the impact of heavy industry. This modular limit switch line has five bodies types, 20 different heads and more than 200 lever arms. The 9007C limit switches are UL Listed and CSA certified. 9007C limit switches can be used in material working, packaging, material handling, conveying, food and beverage, mining and mineral, construction, oil and gas, and crane and hoist applications. It is furnished with screw clamp terminals for electrical connection. It offers mechanical durability of about 10 million operating cycles and electrical durability of about 1 million operating cycles. It is a safety switch with a rated operating current of 1.2A at 600V AC, 0.11A at 250V DC and conventional enclosed thermal current of 10A. It is an IP67 and NEMA 1/2/4/12/13 rated product. This NEMA limit switch has plug-in body made of metal. Its dimensions are 39.37mm (width) x 63.5mm (depth) x 102.11mm (height) and weighs 0.57kg. It is suitable for use in process machinery applications such as machine tools, plastic, rubber and moulding, printing, textile, pulp, paper and wood. This product is certified by UL, CSA and CE. It complies with UL 508, NEMA 250, IEC 60947, EN 60947-5-1, EN 60947-1 and C22-2-14-95 standards. Compact and standard, 39mm plug-in body for hazardous locations. Compliant with US and international standards, the 9007 series limit switches can withstand the impact of heavy industry. This constitutes a comprehensive range of limit switches rigged and dependable built with unparalleled quality.
