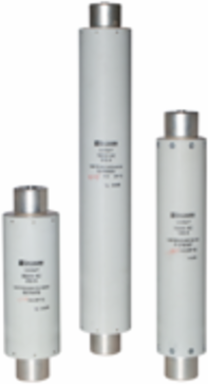

Mersen 45ASD72V400P-3 Limitor - aSJB/D Back-up Fuses 3,6kV to 12kV - with Trip Indicator
- MPN: 45ASD72V400P-3
- PPN: FER-45ASD72V400P-3
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Mersen HV fuse-links have been used for reliable protection in high-voltage switchgear and controlgear and high-voltage systems for decades. Mersen HV fuse link for motor protection is specially designed to protect HV motors against the effect of short circuit current and support repeated peak currents due motor starting. Mersen uses the best materials : fuse elements are in pure silver, caps are in silver-plated brass and body is in melamine fiber glass. As defined in the IEC 60644 the coefficient K is 0.51.
Features
- Striker 50N / 30mm
- Low power losses
- High speed switching
- Voltage drive
- Back-up fuse-links
- High current limitation
- Energy efficency
- Low inductance module structure
- High breaking capacity
Specifications
Product Details
| ROHS Compliant | Consult Technical Services |
|---|---|
| Applications | HV motor protection HV motor pump protection For indoor use Operating temperature -25°C to +40°C |
| Ampere Range | 32 - 430 A |
| Standards | IEC 60282-1 IEC 60644 DIN 43625 |
|---|---|
| CE conformity | Consult Technical Services |
| Lead Free | Yes |
