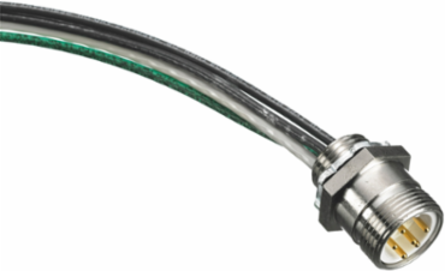

Hubbell Wiring Device-Kellems RM2003PB001 Linkosity 20A 3W Male Receptacle 1 Inch, 3-Pole, #12 AWG
- MPN: RM2003PB001
- UPC: 783585409306
- PPN: HBL-RM2003PB001
- UNSPSC: 32151905
CAD
$188.58
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Linkosity, 20A 3W, Male Receptacle, 1'
Features
- Linkosity
- 20A 3W
- Male Receptacle
- 1'
- Green/Yellow/White/Black Wires
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Width
- 5.750 in
- Application
- Power and Control Integration
- Conductor Size
- #12 AWG
- Number of Conductors
- 3
- Special Features
- Green/Yellow/White/Black Wires
- Wattage
- 12000
- General Literature Asset 1 Display Text
- Pulp & Paper Solutions
- General Literature Asset 3 Display Text
- Linkosity Wiring System
- Nema Rating
- Non-NEMA
- Number Of Poles
- 3-Pole
- Description - Invoice
- LINKOSITY MALE RECEPTACLE, 20A 3W, 1'
- Harmonization Code
- 8536694020
- MSDS Flag
- No
- Construction
- Fabricated
- Material
- Composite
- BOX SIZE
- 13.000x14.400x14.700 (in)
- Carton - Number of Sub Packs
- 50
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585409306
- Case Weight
- 16.750 lb.
- Lowest Level UOM
- Each
Current / Amperage Rating20 A
Amperage Rating20 A
ColorGray
NEMA RatingNon-NEMA
Number of Poles3-Pole
Voltage Rating600V Max kV
Engineering Drawing 1 Display TextRM2003PB001 AutoCAD Drawing
General Literature Asset 2 Display TextPULP & PAPER SOLUTIONS
Conductor TypeCopper
Number Of Conductors3
Class CodeA28
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA28A300
Current Rating20 A
Base Unit of MeasureEA
Carton - Gross Weight per Pack17.500 lb.
Carton - Pack DescriptionCarton
Carton - Total Units50 EA
Each - Pack DescriptionEach
NAICS Code335931A107
