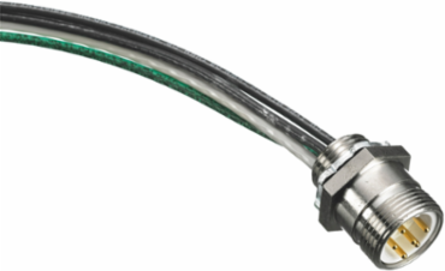

Hubbell Wiring Device-Kellems RM2304PB001 Linkosity Male Receptacle, 20A, 4P, 1 Inch, Composite
- MPN: RM2304PB001
- UPC: 783585354866
- PPN: HBL-RM2304PB001
- UNSPSC: 32151905
CAD
$195.66
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Signal and Control Products, Linkosity, Male Receptacle, 20A Single, 4P, 1'
Features
- Linkosity
- Male Receptacle
- 20A Single
- 4P
- Super Neutral and IG, Green/Yellow/White/Black Wires
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Width
- 5.000 in
- Application
- Power and Control Integration
- Conductor Size
- #12 AWG, #10 AWG Neutral
- Number of Conductors
- 4
- Special Features
- Super Neutral and IG, Green/Yellow/White/Black Wires
- Wattage
- 12000
- General Literature Asset 1 Display Text
- Pulp & Paper Solutions
- General Literature Asset 3 Display Text
- Linkosity Wiring System
- Nema Rating
- Non-NEMA
- Number Of Poles
- 4-Pole
- Description - Invoice
- LINKOSITY MALE RCPT, 20A SNIG 4P, 1', PB
- Harmonization Code
- 8536694020
- MSDS Flag
- No
- Sub Class Code
- A28A300
- Current Rating
- 20 A
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 12.750 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 50 EA
- Lowest Level UOM
- Each
Current / Amperage Rating20 A
Amperage Rating20 A
ColorGray
NEMA RatingNon-NEMA
Number of Poles4-Pole
Voltage Rating600V Max kV
Engineering Drawing 1 Display TextRM2304PB001 AutoCAD Drawing
General Literature Asset 2 Display TextPULP & PAPER SOLUTIONS
Conductor TypeCopper
Number Of Conductors4
Class CodeA28
Freight Class Code06168002
Image Actual Or RepresentativeA
Replaced Catalog NumberRF2304PB0010000;RM2304PB0010000
ConstructionFabricated
MaterialComposite
BOX SIZE8.245x10.125x8.745 (in)
Carton - Number of Sub Packs50
Carton - SCC-14 Next Lower Level Sub Pack783585354866
Each - Pack DescriptionEach
NAICS Code335931A107
Certifications
- EU RoHS Indicator
- Yes
