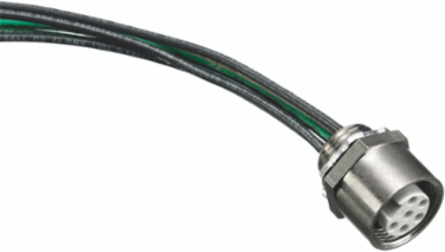

Hubbell Wiring Device-Kellems RF2304PA005 Linkosity Female Receptacle 20A 4P 5 Inch Composite
- MPN: RF2304PA005
- UPC: 783585524115
- PPN: HBL-RF2304PA005
- UNSPSC: 32151905
CAD
$228.34
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Linkosity, Female Receptacle, 20A Single, 4P, 5'
Features
- Linkosity20A Single
- 4P
- 5'
- Super Neutral and IG, Green/Yellow/Black Wires
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Width
- 5.000 in
- Application
- Power and Control Integration
- Conductor Size
- #12 AWG, #10 AWG Neutral
- Number of Conductors
- 4
- Special Features
- Super Neutral and IG, Green/Yellow/Black Wires
- Wattage
- 12000
- General Literature Asset 1 Display Text
- Pulp & Paper Solutions
- General Literature Asset 3 Display Text
- Linkosity Wiring System
- Nema Rating
- Non-NEMA
- Number Of Poles
- 4-Pole
- Description - Invoice
- LINKOSITY FEM RCPT, 20A SNIG 4P 5', PA
- Harmonization Code
- 8536694020
- MSDS Flag
- No
- Construction
- Fabricated
- Material
- Composite
- BOX SIZE
- (in)
- Carton - Pack Description
- Carton
- Carton - Total Units
- 50 EA
- Lowest Level UOM
- Each
Current / Amperage Rating20 A
Amperage Rating20 A
ColorGray
NEMA RatingNon-NEMA
Number of Poles4-Pole
Voltage Rating600V Max kV
Engineering Drawing 1 Display TextRF2304PA005 AutoCAD Drawing
General Literature Asset 2 Display TextPULP & PAPER SOLUTIONS
Conductor TypeCopper
Number Of Conductors4
Class CodeA28
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA28A300
Current Rating20 A
Base Unit of MeasureEA
Carton - Number of Sub Packs50
Carton - SCC-14 Next Lower Level Sub Pack783585524115
Each - Pack DescriptionEach
NAICS Code335931A107
Certifications
- EU RoHS Indicator
- Yes
