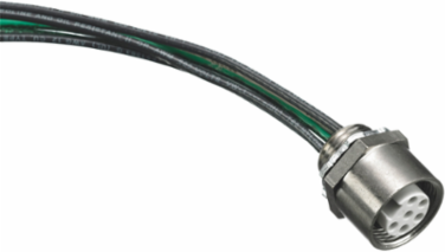

Hubbell Wiring Device-Kellems RF2306PB001 Linkosity Female Receptacle 20A 6-Pole 12 Inch Composite
- MPN: RF2306PB001
- UPC: 783585354835
- PPN: HBL-RF2306PB001
- UNSPSC: 32151905
CAD
$255.80
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Linkosity, Female Receptacle, 20A Single, 6P, 1 '
Features
- Super Neutral and IG
- Green/Yellow/White/Black Wires
- Super Neutral and IG, Green/Yellow/White/Black Wires
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Width
- 12.000 in
- Application
- Power and Control Integration
- Conductor Size
- #12 AWG, #10 AWG Neutral
- Number of Conductors
- 6
- Special Features
- Super Neutral and IG, Green/Yellow/White/Black Wires
- Wattage
- 12000
- General Literature Asset 1 Display Text
- Pulp & Paper Solutions
- General Literature Asset 3 Display Text
- Linkosity Wiring System
- Nema Rating
- Non-NEMA
- Number Of Poles
- 6-Pole
- Description - Invoice
- LINKOSITY FEM RCPT, 20A SNIG 6P 1 '
- Harmonization Code
- 8536694020
- MSDS Flag
- No
- Construction
- Fabricated
- Material
- Composite
- BOX SIZE
- 11.000x10.300x10.800 (in)
- Carton - Number of Sub Packs
- 50
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585354835
- Case Weight
- 18.900 lb.
- Lowest Level UOM
- Each
Current / Amperage Rating20 A
Amperage Rating20 A
ColorGray
NEMA RatingNon-NEMA
Number of Poles6-Pole
Voltage Rating600V Max kV
Engineering Drawing 1 Display TextRF2306PB001 AutoCAD Drawing
General Literature Asset 2 Display TextPULP & PAPER SOLUTIONS
Conductor TypeCopper
Number Of Conductors6
Class CodeA28
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA28A300
Current Rating20 A
Base Unit of MeasureEA
Carton - Gross Weight per Pack100.000 lb.
Carton - Pack DescriptionCarton
Carton - Total Units50 EA
Each - Pack DescriptionEach
NAICS Code335931A107
Certifications
- EU RoHS Indicator
- Yes
