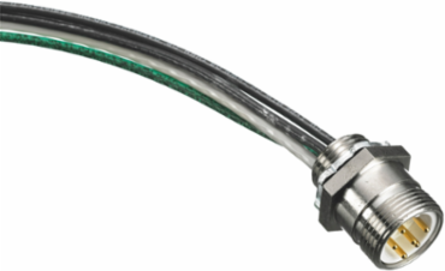

Hubbell Wiring Device-Kellems RM2005PB005 Linkosity Male Receptacle 20A 5-Pole, Composite, 11.250 Inch

MPN: RM2005PB005
UPC: 783585409474
PPN: HBL-RM2005PB005
UNSPSC: 32151905

$217.51

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Linkosity, Male Receptacle, 20A 5W

Features

Linkosity20A 5W
Green/Yellow/White/Black Wires

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	United States
Width	11.250 in
Application	Power and Control Integration
Conductor Size	#12 AWG
Number of Conductors	5
Special Features	Green/Yellow/White/Black Wires
Wattage	12000 W
Engineering Drawing 1 Display Text	RM2005PB005 AutoCAD Drawing
General Literature Asset 2 Display Text	PULP & PAPER SOLUTIONS
Conductor Type	Copper
Number Of Conductors	5
Class Code	A28
Freight Class Code	06168002
Image Actual Or Representative	A
Sub Class Code	A28A300
Current Rating	20 A
Base Unit of Measure	EA
Carton - Gross Weight per Pack	40.000 lb.
Carton - Pack Description	Carton
Carton - Total Units	50 EA
Each - Pack Description	Each
NAICS Code	335931A107

Current / Amperage Rating	20 A
Amperage Rating	20 A
Color	Gray
NEMA Rating	Non-NEMA
Number of Poles	5-Pole
Voltage Rating	600V Max kV
Weight	0.8 lb.
General Literature Asset 1 Display Text	Pulp & Paper Solutions
General Literature Asset 3 Display Text	Linkosity Wiring System
Nema Rating	Non-NEMA
Number Of Poles	5-Pole
Description - Invoice	LINKOSITY MALE, RCPT, 20A 5W, 5', PB
Harmonization Code	8536694020
MSDS Flag	No
Construction	Fabricated
Material	Composite
BOX SIZE	3.000x14.400x14.500 (in)
Carton - Number of Sub Packs	50
Carton - SCC-14 Next Lower Level Sub Pack	783585409474
Case Weight	41.500 lb.
Lowest Level UOM	Each
