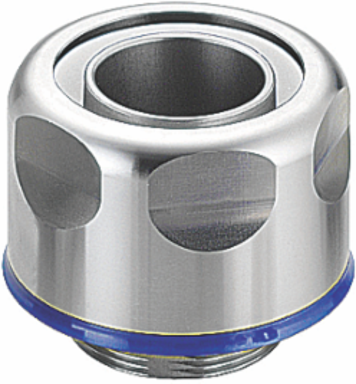

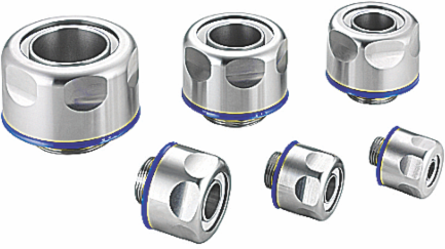

Adaptaflex SPL50/150/SAM Liquid Tight Non-Metallic Fitting

MPN: SPL50/150/SAM
UPC: 786210213149
PPN: T-B-SPL50/150/SAM

$910.35

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Single Piece Conduit Fitting for Food and Beverage, Straight, Nominal Conduit Size 50mm, 1-1/2 Inch NPT Thread, 316 Stainless Steel

Specifications

European Specifications (ETIM)

ETIM	EC001180 Screw connection for protective metallic hose
Degree of protection (IP) conduit dependant	IP40-IP69
Revolving thread	Y
Connection type screw connection to housing	Thread
Thread connection size	Other
Material housing	Stainless steel
Total length	64.7mm
Approved in combination with protective conduit DIN EN 61386-23	N
Approved in combination with protective conduit UL	Y
Operating temperature	-50-+130°C

Nominal diameter	50mm
Model	Straight
Construction type	External thread
Thread type	NPT
One-piece	Y
Thread length	21mm
Total height	69.0mm
Approved in combination with protective conduit CSA	N
Approved in combination with protective conduit FI	N

North American Specifications (UNSPSC)

UNSPSC	39121311 Electrical fittings
Brand Name	Adaptaflex
Application	Indoor Splash Zone Areas or Food Processing Equipment
Material	Stainless Steel
Connection	Straight
