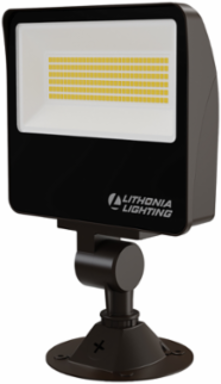

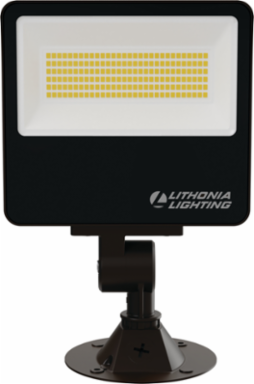

Lithonia Lighting ESXF2 ALO SWW2 KY DDB M2 LED Floodlight 9.75 x 6.75 x 1.8 Inch, 56W, 3000-7500 Lumens
- MPN: ESXF2 ALO SWW2 KY DDB M2
- UPC: 196182393242
- PPN: LTH-ESXF2 ALO SWW2 KY DDB M2
- UNSPSC: 39111611
CAD
$134.43
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Design Select
Features

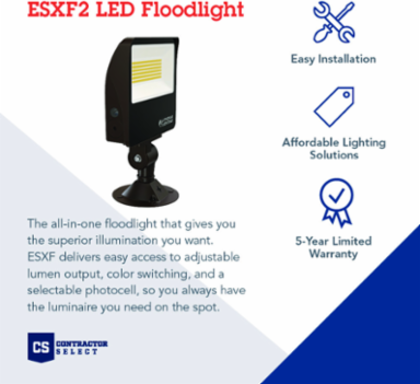

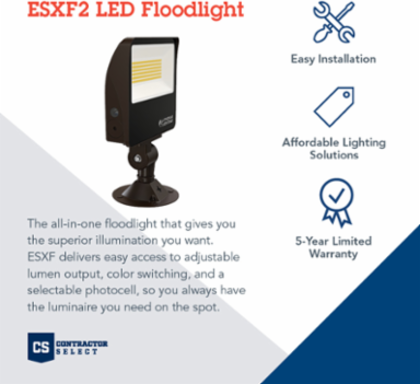

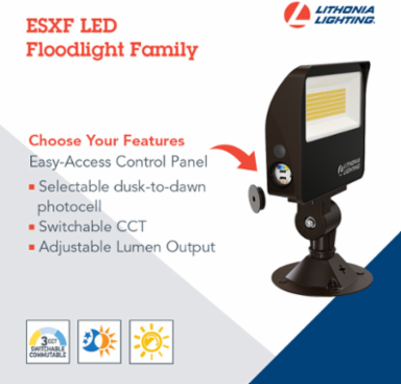

- DESIGN: The Lithonia Lighting® ESXF LED is the all-in-one floodlight, providing easy access to adjustable lumen output (ALO), tri-level CCT switching, and selectable dusk-to-dawn photocell
- ENERGY SAVINGS: Energy-efficient LEDs with a lumen output of 3500, 5500, and 7500 lumens

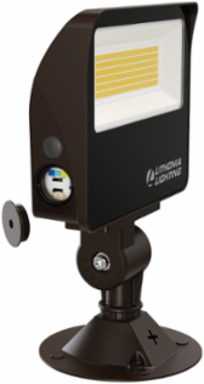

- SELECTABLE: Adjustable Lumen Output, Switchable CCT (3000K, 4000K, 5000K) and Standard Photocell
- RATINGS: IP66 Rated aluminum housing, DLC Certified, CSA certified to US and Canadian standards
- VOLTAGE: MVOLT (120-277V), utilizes electronic drivers that are 0-10V, capable of continuous dimming and ensure system power factor >90% and THD <20%
- INTENDED USE: Designed to provide a cost effective, energy-efficient solution for the one-for-one replacement of existing traditional sources

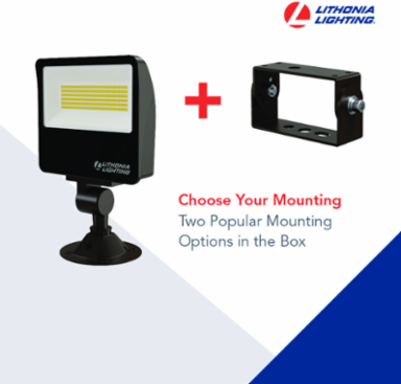

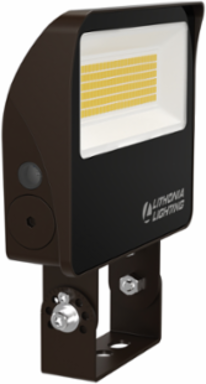

- INSTALLATION: Ships with ½ NPT threaded knuckle mount factory installed and can be mounted to conduit bodies or to 4" electrical boxes using the provided round mounting plate, included yoke mounts can be easily changed in the field
- CONSTRUCTION: Sealed die-cast aluminum body and IP66 listed to withstand moisture and the elements
- WARRANTY: Five-year limited warranty

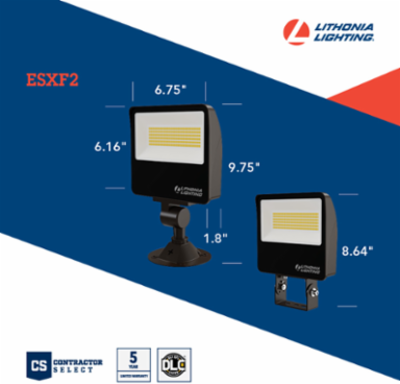

- DIMENSIONS: 6.16 in. x 6.75 in. x 1.8 in.

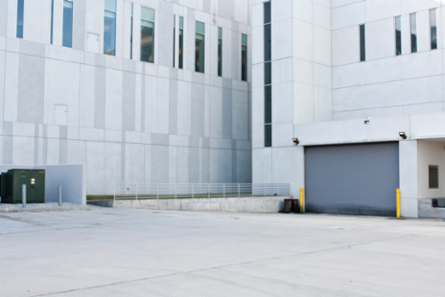

- Ideal for parking areas, street lighting, walkways and car lots
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
- Color
- Bronze
- Shape
- Rectangular
- Environmental Conditions
- Outdoor
- Color Rendering Index (CRI)
- 80
- Color Temperature
- Variable K
- Lumens
- 3000 LM, 3500 LM, 5000 LM, 5500 LM, 7000 LM, 7500 LM LM
- Power Rating
- 56
- Type
- Floodlight
Voltage Rating120-277 V
Lamp TypeLED - Static
MountingKnuckle, Yoke
Wattage56 W
Average Life50, 000 Hours
Fixture TypeFloodLight
Number Of Lamps1
Size9.75 x 6.75 x 1.8 IN
