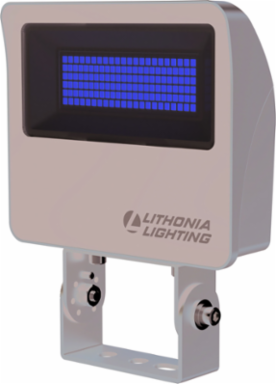

Acuity Brands ESXF1 ALO SWW2 KY DDB M2 LED Floodlight, 34W, 1500/3000/5000 Lumens, 7.65 x 6.04 x 1.86 Inch

LED Floodlight, 34W, 1500/3000/5000 Lumens, 7.65 x 6.04 x 1.86 Inch - https://media.province-electric.com/326/xlsx_acuity/medium/4b81c1078156062070ac379bd44c644b25adb272-medium.png

LED Floodlight, 34W, 1500/3000/5000 Lumens, 7.65 x 6.04 x 1.86 Inch - https://media.province-electric.com/326/xlsx_acuity/medium/9ffe395ccd482830b9a25de74206c86c82477c4a-medium.png

LED Floodlight, 34W, 1500/3000/5000 Lumens, 7.65 x 6.04 x 1.86 Inch - https://media.province-electric.com/326/xlsx_acuity/medium/47ea4c990b0904e7a41c08e318ffe65bf07ad0f1-medium.png

LED Floodlight, 34W, 1500/3000/5000 Lumens, 7.65 x 6.04 x 1.86 Inch - https://media.province-electric.com/326/xlsx_acuity/medium/d006466772428c72485f9149aae600ddb89f3add-medium.png

LED Floodlight, 34W, 1500/3000/5000 Lumens, 7.65 x 6.04 x 1.86 Inch - https://media.province-electric.com/326/xlsx_acuity/medium/746ecc3aaf3ae921a03a5f2314bbfd1eacbc988c-medium.png

LED Floodlight, 34W, 1500/3000/5000 Lumens, 7.65 x 6.04 x 1.86 Inch - https://media.province-electric.com/326/xlsx_acuity/medium/af84ea9b68b11afdee1637d5bffe0729bd85bb44-medium.png

LED Floodlight, 34W, 1500/3000/5000 Lumens, 7.65 x 6.04 x 1.86 Inch - https://media.province-electric.com/326/xlsx_acuity/medium/c57fe8034c3adceafa94f93715df7b2bbbded2ba-medium.png

LED Floodlight, 34W, 1500/3000/5000 Lumens, 7.65 x 6.04 x 1.86 Inch - https://media.province-electric.com/326/xlsx_acuity/medium/6ddfa46bfc77070f5272b3582cad928c92702004-medium.png

LED Floodlight, 34W, 1500/3000/5000 Lumens, 7.65 x 6.04 x 1.86 Inch - https://media.province-electric.com/326/xlsx_acuity/medium/7c2a661727a9ff2b9eeb762c9a2c1529a75d7de0-medium.png

LED Floodlight, 34W, 1500/3000/5000 Lumens, 7.65 x 6.04 x 1.86 Inch - https://media.province-electric.com/326/xlsx_acuity/medium/e24666e100366ac7fc547849ccd692011e3a7d41-medium.png

LED Floodlight, 34W, 1500/3000/5000 Lumens, 7.65 x 6.04 x 1.86 Inch - https://media.province-electric.com/326/xlsx_acuity/medium/9b190c70342120685d3a88f4503dc946f8ca0ca9-medium.png

LED Floodlight, 34W, 1500/3000/5000 Lumens, 7.65 x 6.04 x 1.86 Inch

Acuity Brands ESXF1 ALO SWW2 KY DDB M2 LED Floodlight, 34W, 1500/3000/5000 Lumens, 7.65 x 6.04 x 1.86 Inch

MPN: ESXF1 ALO SWW2 KY DDB M2
UPC: 196182393204
PPN: LTH-ESXF1 ALO SWW2 KY DDB M2
UNSPSC: 39111611

Spec sheet

Compare

Loading compare button...

In Stock

Company Stock:

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Looking to buy a large quantity?

To view product inventory

CAD$106.56/ EA

Qty:

Loading add to cart quantity...

Description

Design Select

Features

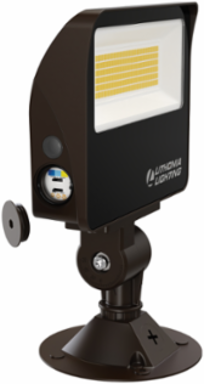

DESIGN: The Lithonia Lighting® ESXF LED is the all-in-one floodlight, providing easy access to adjustable lumen output (ALO), tri-level CCT switching, and selectable dusk-to-dawn photocell
ENERGY SAVINGS: Energy-efficient LEDs with a lumen output of 1500, 3000, and 5000 lumens

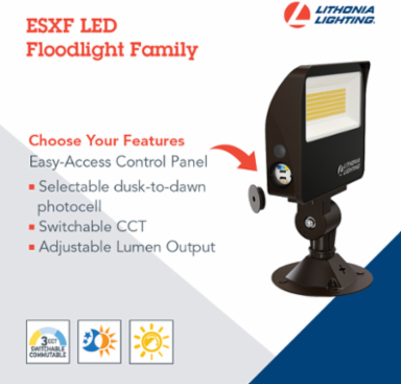

SELECTABLE: Adjustable Lumen Output, Switchable CCT (3000K, 4000K, 5000K) and Standard Photocell
RATINGS: IP66 Rated aluminum housing, DLC Certified, CSA certified to US and Canadian standards
VOLTAGE: MVOLT (120-277V), utilizes electronic drivers that are 0-10V, capable of continuous dimming and ensure system power factor >90% and THD <20%
INTENDED USE: Designed to provide a cost effective, energy-efficient solution for the one-for-one replacement of existing traditional sources

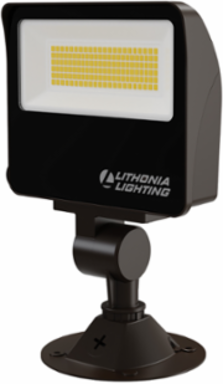

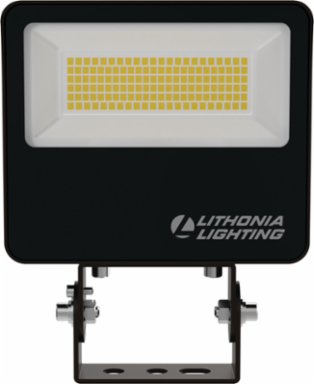

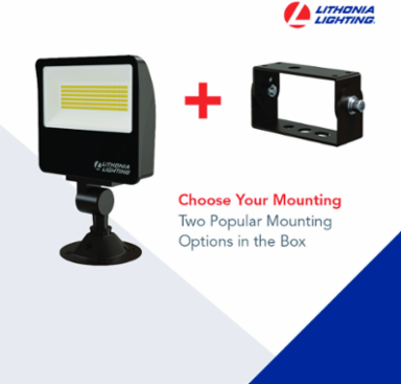

INSTALLATION: Ships with ½ NPT threaded knuckle mount factory installed and can be mounted to conduit bodies or to 4" electrical boxes using the provided round mounting plate, included yoke mounts can be easily changed in the field
CONSTRUCTION: Sealed die-cast aluminum body and IP66 listed to withstand moisture and the elements
WARRANTY: Five-year limited warranty

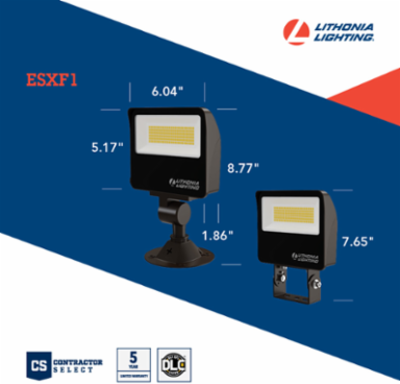

DIMENSIONS: 5.17 in. x 6.04 in. x 1.86 in.

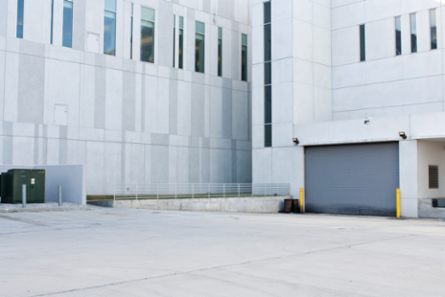

Ideal for parking areas, street lighting, walkways and car lots

Specifications

Country of Origin: China

Color: Bronze

Shape: Rectangular

Environmental Conditions: Outdoor

Color Rendering Index (CRI): 80

Color Temperature: Variable K

Power Rating: 34

Type: Floodlight

Voltage Rating120-277 V

Lamp TypeLED - Static

MountingKnuckle, Yoke

Wattage34 W

Average Life50, 000 Hours

Lumens1500 LM, 3000 LM, 5000 LM LM

Size7.65 x 6.04 x 1.86 IN
