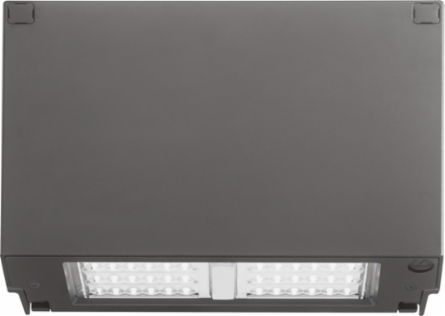

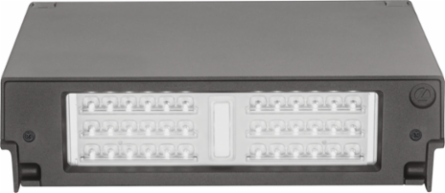

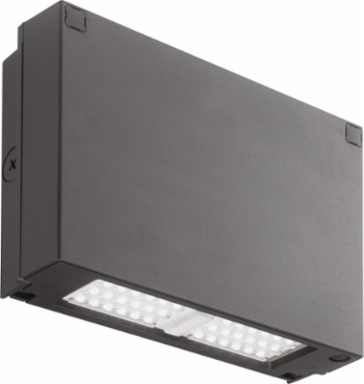

Lithonia Lighting WPX1 LED P1 30K MVOLT DDBXD 11.1 Inch x 8.1 Inch Wallpack, 12W, 1,550 Lumen Output, IP66 Rated
- MPN: WPX1 LED P1 30K MVOLT DDBXD
- UPC: 194994017684
- PPN: LTH-WPX1 LED P1 30K MVOLT DDBXD
- UNSPSC: 39111503
CAD
$211.97
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
11.1 Inch x 8.1 Inch Wallpack, 12W, 1,550 Lumen Output, IP66 Rated
Features
- The WPX LED wall packs are energy-efficient, cost effective, and aesthetically appealing solutions for both HID wall pack replacement and new construction opportunities
- 1,550 lumen output and 11W
- Hardwired on/off capability only
- CSA certified to meet US and Canadian standards, suitable for wet locations, IP66 Rated and DesignLights Consortium® (DLC) Premium qualified product

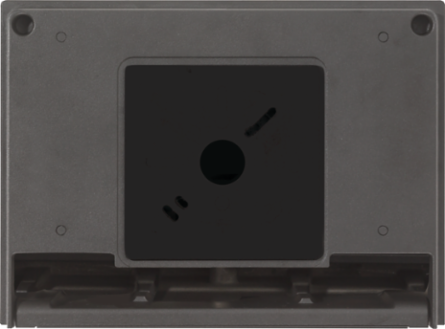

- MVOLT driver operates on any line voltage from 120-277V (50/60Hz) and can be mounted directly over a standard electrical junction box, or using conduit ports on the sides or back where wiring can be made in the integral wiring compartment in all cases
- Light engine(s) configurations consist of high-efficacy LEDs and LED lumen maintenance is L90/100,000 hours
- Die-cast aluminum main body with optimal thermal management that both enhances LED efficacy and extends component life and the luminaires are IP66 rated and sealed against moisture and environmental contaminants
- Geometric shape covers the footprint of a typical HID wall pack, covering any unsightly stains.
- Five-year limited warranty
- 11.1 in x 8.1 in x 3.2 in
- The WPX family of LED wall packs are your best choice for your everyday wall mounted lighting needs
- No longer will your customers have to sacrifice performance and style to get the low initial cost that they demand
- With three sizes and lumen packages of 1,550 to 9,200 lumens, the WPX family is a site-wide solution, replacing up to 400W metal halide wall packs
- Since the WPX footprints are larger than that of typical metal halide glass wall packs, they fully cover unsightly stains, resulting in a neat application without the need for additional patch and repair
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Color
- Bronze
- Mounting
- Surface
- Finish
- Gloss
- Width
- 11.1 IN
- Lamp Included
- Yes
- Socket Type
- Integrated LED
- Material
- Aluminum
Voltage Rating120-277 V
Lamp TypeLED - Static
Wattage12 W
Length8.1 IN
Height3.2
StyleTraditional
TypeWallpack
