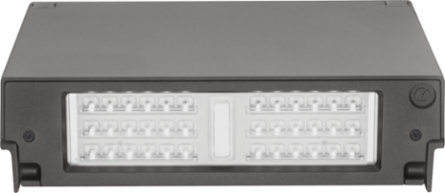

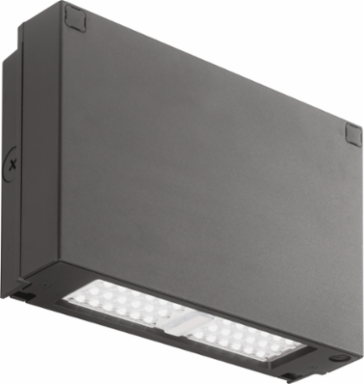

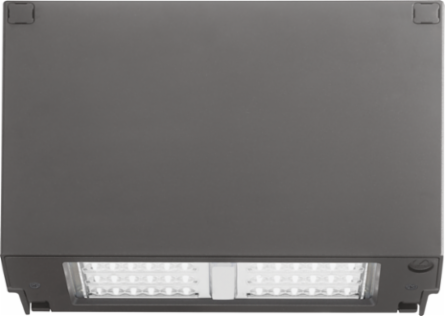

Acuity Brands WPX1 LED P1 50K MVOLT DDBXD Wallpack, 12W, 11.1 Inch Width, 3.2 Inch Height, Bronze Finish
Acuity Brands WPX1 LED P1 50K MVOLT DDBXD Wallpack, 12W, 11.1 Inch Width, 3.2 Inch Height, Bronze Finish
- MPN: WPX1 LED P1 50K MVOLT DDBXD
- UPC: 194994017929
- PPN: LTH-WPX1 LED P1 50K MVOLT DDBXD
- UNSPSC: 39111503
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$206.72/ EA
Features
- The WPX LED wall packs are energy-efficient, cost effective, and aesthetically appealing solutions for both HID wall pack replacement and new construction opportunities
- 1,550 lumen output and 11W
- Hardwired on/off capability only
- CSA certified to meet US and Canadian standards, suitable for wet locations, IP66 Rated and DesignLights Consortium® (DLC) Premium qualified product

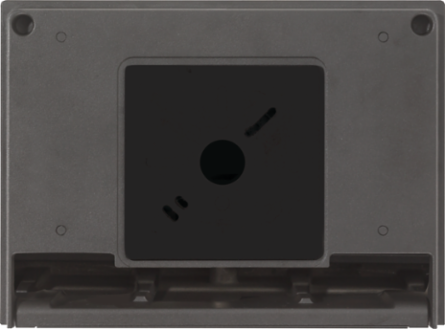

- MVOLT driver operates on any line voltage from 120-277V (50/60Hz) and can be mounted directly over a standard electrical junction box, or using conduit ports on the sides or back where wiring can be made in the integral wiring compartment in all cases
- Light engine(s) configurations consist of high-efficacy LEDs and LED lumen maintenance is L90/100,000 hours
- Die-cast aluminum main body with optimal thermal management that both enhances LED efficacy and extends component life and the luminaires are IP66 rated and sealed against moisture and environmental contaminants
- Geometric shape covers the footprint of a typical HID wall pack, covering any unsightly stains.
- Five-year limited warranty
- 11.1 in x 8.1 in x 3.2 in
- The WPX family of LED wall packs are your best choice for your everyday wall mounted lighting needs
- No longer will your customers have to sacrifice performance and style to get the low initial cost that they demand
- With three sizes and lumen packages of 1,550 to 9,200 lumens, the WPX family is a site-wide solution, replacing up to 400W metal halide wall packs
- Since the WPX footprints are larger than that of typical metal halide glass wall packs, they fully cover unsightly stains, resulting in a neat application without the need for additional patch and repair
Specifications
Specifications
- Country of Origin
- Mexico
- Color
- Bronze
- Mounting
- Surface
- Finish
- Gloss
- Width
- 11.1 IN
- Lamp Included
- Yes
- Socket Type
- Integrated LED
- Material
- Aluminum
Voltage Rating120-277 V
Lamp TypeLED - Static
Wattage12 W
Length8.1 IN
Height3.2
StyleTraditional
TypeWallpack
Downloads

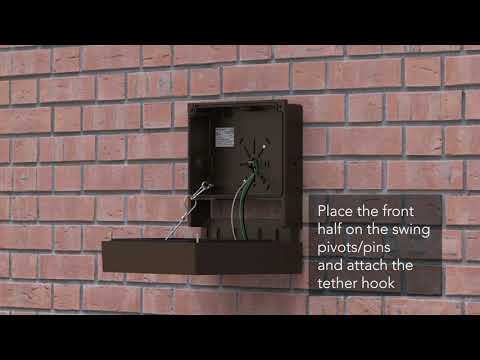

Video
