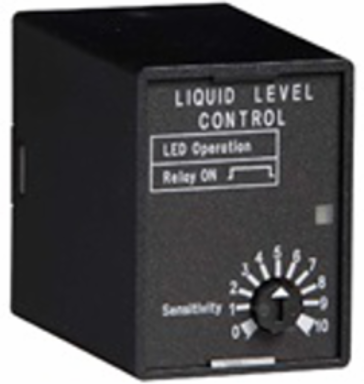

Littelfuse LLC24B2F50N LLC24B2F50N - LLC2 Series
- MPN: LLC24B2F50N
- UPC: 079458996128
- PPN: LTF-LLC24B2F50N
CAD
$172.15
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Operation Drain (Pump-Down Mode): When the liquid level rises and touches the high probe, the output relay energizes and remains energized until the liquid level falls below the low probe. The output relay then de-energizes and remains de-energized until the liquid again touches the high probe. Fill (Pump-Up Mode): When the liquid level falls below the low probe, the output relay energizes and remains energized until the liquid level rises and touches the high probe. The output relay then de-energizes and remains de-energized until the liquid level again falls below the low probe.
Documentation & Downloads
Specifications
Key Specifications
- Input Voltage (V)
- 120VAC
- Input AC Line Frequency (Hz)
- 50/60Hz
- Output Form
- Isolated SPDT
- Sense Voltage
- 12VAC at probe terminals
- Sense Resistance Tolerance
- ±10%
- Isolation Voltage (V)
- ≥1500V RMS between input output and probe
- Life
- Mechanical - 1 x 107; Electrical - 1 x 105
- Mounting Method
- Surface mount to probe common with two or four #6 (M3.5 x 0.6) screws
- Storage Temperature (F/C)
- -40° to 80°C (-40°F to 176°F)
- Weight (lbs/g)
- ≅9.0oz (255g)
Input Tolerance (%)-0.3
Output TypeElectromechanical relay
Output Load Rating (VA)10A resistive @ 120/240VAC and 28VDC; 1/3hp @ 120/240VAC
Sense Resistance (Ohms)50 kΩ fixed
Control TypeResistance sensing for high and low level detection of conductive liquids
CircuitryPrinted circuit board is conformal coated to resist moisture and corrosion
Termination TypeTerminal blocks for up to #14 AWG (2.5mm2) wire
Operating Temperature-20° to 55°C (-4°F to 131°F)
Dimensions4.00 x 3.00 x 2.00 in. (101.6 x 76.2 x 50.8mm)
