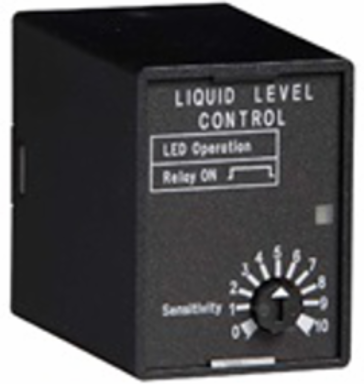

Littelfuse LLC26A1F25C LLC26A1F25C - LLC2 Series

MPN: LLC26A1F25C
UPC: 079458996159
PPN: LTF-LLC26A1F25C

$164.21

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Operation Drain (Pump-Down Mode): When the liquid level rises and touches the high probe, the output relay energizes and remains energized until the liquid level falls below the low probe. The output relay then de-energizes and remains de-energized until the liquid again touches the high probe. Fill (Pump-Up Mode): When the liquid level falls below the low probe, the output relay energizes and remains energized until the liquid level rises and touches the high probe. The output relay then de-energizes and remains de-energized until the liquid level again falls below the low probe.

Documentation & Downloads

Specifications

Key Specifications

Input Voltage (V)	230VAC
Input AC Line Frequency (Hz)	50/60Hz
Output Form	Isolated SPDT
Sense Voltage	12VAC at probe terminals
Sense Resistance Tolerance	±10%
Isolation Voltage (V)	≥1500V RMS between input output and probe
Life	Mechanical - 1 x 107; Electrical - 1 x 105
Mounting Method	Surface mount to probe common with two or four #6 (M3.5 x 0.6) screws
Storage Temperature (F/C)	-40° to 80°C (-40°F to 176°F)
Weight (lbs/g)	≅9.0oz (255g)

Input Tolerance (%)	-0.3
Output Type	Electromechanical relay
Output Load Rating (VA)	10A resistive @ 120/240VAC and 28VDC; 1/3hp @ 120/240VAC
Sense Resistance (Ohms)	25 kΩ fixed
Control Type	Resistance sensing for high and low level detection of conductive liquids
Circuitry	Printed circuit board is conformal coated to resist moisture and corrosion
Termination Type	0.25 in. (6.35mm) male quick connect terminals
Operating Temperature	-20° to 55°C (-4°F to 131°F)
Dimensions	4.00 x 3.00 x 2.00 in. (101.6 x 76.2 x 50.8mm)
