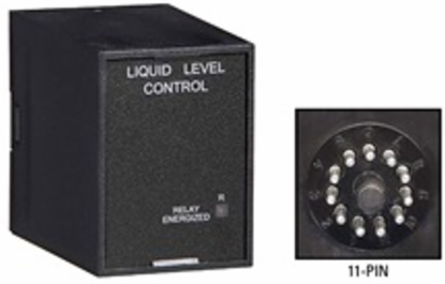

Littelfuse LLC6410F10M LLC6410F10M - LLC6 Series
- MPN: LLC6410F10M
- UPC: 079458996425
- PPN: LTF-LLC6410F10M
CAD
$167.16
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
See datasheet for operation and reset details.
Documentation & Downloads
Specifications
Key Specifications
- Input Voltage (V)
- 120VAC
- Input AC Line Frequency (Hz)
- 50/60Hz
- Output Form
- Non-isolated SPDT
- Time Delay Range
- 10s fixed
- Reset Time (ms)
- Manual / automatic reset
- Sense Voltage
- 12VAC nominal at probe terminals
- Sense Resistance Tolerance
- Fixed ±10%
- Isolation Voltage (V)
- ≥2500V RMS between input and output terminals
- Termination Type
- 11-pin relay type
- Operating Temperature
- -40° to 60°C (-40°F to 140°F)
- Humidity
- 95% relative non-condensing
- Weight (lbs/g)
- ≅7.3oz (207g)
Input Tolerance (%)-0.3
Output TypeElectromechanical relay
Output Load Rating (VA)10A resistive @ 240VAC; 1/4hp @ 125VAC; 1/2hp @ 250VAC
Time Delay Tolerance (%)±20%
Repeat Accuracy (%)±10%
Sense Resistance (Ohms)10 kΩ
Control TypeON/OFF (single level) resistance sensor with built-in time delay to prevent rapid cycling
Surge ProtectionIEEE C62.41-1991 Level A
Mounting MethodPlug-in socket
Storage Temperature (F/C)-40° to 80°C (-40°F to 176°F)
Dimensions2.91 x 2.39 x 1.78 in. (73.9 x 60.7 x 45.2mm)
