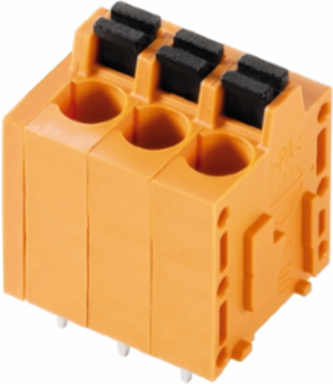

Weidmuller 1426080000 LMF 5.08/04/180 3.5SN BK BX
- MPN: 1426080000
- PPN: WDM-1426080000
CAD
$2.06
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
LMF 5.08/04/180 3.5SN BK BX
Specifications
Approvals
- Approvals
- EAC
ROHSConform
Dimensions And Weights
- Net weight
- 6.251 g
General Ordering Data
- Type
- LMF 5.08/04/180 3.5SN BK BX
- Version

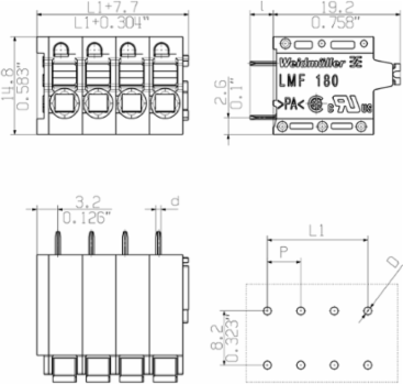

- PCB terminal, 5.08 mm, No. of poles: 4, 180°, Solder pin length (l): 3.5 mm, tinned, Black, PUSH IN, Clamping range, rated connection, max.: 2.5 mm², Box
- Qty.
- 70 pc(s).
- Product data
- UL: 300 V / 10 A / AWG 26 - AWG 12
Order No.1426080000
GTIN (EAN)4050118229974

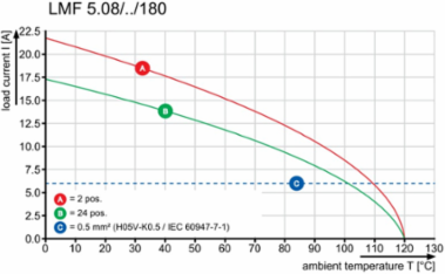

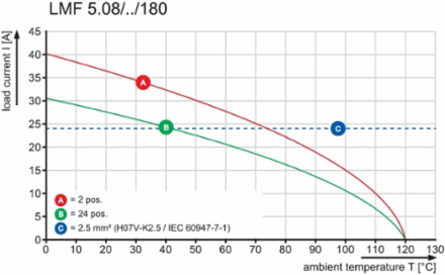

Product dataIEC: 400 V / 24 A / 0.2 - 2.5 mm²
PackagingBox
Rated Data Acc. To CSA
- Rated voltage (Use group B)
- 300 V
- Rated voltage (use group D)
- 300 V
- Rated current (use group C)
- 10 A
- Wire cross-section, AWG, min.
- AWG 26
Rated voltage (Use group C)50 V
Rated current (use group B)10 A
Rated current (use group D)10 A
Wire cross-section, AWG, max.AWG 12
Rated Data Acc. To UL 1059
- Rated voltage (use group B)
- 300 V
- Rated voltage (use group D)
- 300 V
- Rated current (use group C)
- 10 A
- Wire cross-section, AWG, min.
- AWG 26
Rated voltage (use group C)50 V
Rated current (use group B)10 A
Rated current (use group D)10 A
Wire cross-section, AWG, max.AWG 12
Material Data
- Insulating material
- Wemid (PA)
- Colour chart (similar)
- RAL 9011
- Insulation resistance
- ≥ 10
- Contact material
- CuSn
- Coating
- 4-6 μm SN
- Layer structure of solder connection
- 4-6 µm Sn matt
- Storage temperature, max.
- 55 °C
- Operating temperature, min.
- -50 °C
- Temperature range, installation, min.
- -25 °C
ColourBlack
CTI≥ 600
UL 94 flammability ratingV-0
Contact surfacetinned
Tinning typematt
Storage temperature, min.-25 °C
Max. relative humidity during storage80 %
Operating temperature, max.120 °C
Temperature range, installation, max.120 °C
Classifications
- ETIM 3.0
- EC001284
- ETIM 5.0
- EC002643
- eClass 6.2
- 27-26-11-01
- eClass 8.1
- 27-44-04-01
- eClass 9.1
- 27-44-04-01
ETIM 4.0EC002643
ETIM 6.0EC002643
eClass 7.127-44-04-01
eClass 9.027-44-04-01
System Parameters
- Product family
- OMNIMATE Signal - series LMF
- Mounting onto the PCB
- THT solder connection
- Pitch in mm (P)
- 5.08 mm
- No. of poles
- 4
- Number of rows
- 1
- Solder pin length (l)
- 3.5 mm
- Solder eyelet hole diameter (D)
- 1.1 mm
- Number of solder pins per pole
- 2
- Screwdriver blade standard
- DIN 5264
- L1 in mm
- 15.24 mm
- Touch-safe protection acc. to DIN VDE 0470
- IP 20
- Insulation resistance
- ≥ 10
Wire connection methodPUSH IN
Conductor outlet direction180°
Pitch in inches (P)0.2 inch
Fitted by customerNo
Max. adjacent poles per row24
Solder pin dimensionsd = 0.8 mm
Solder eyelet hole diameter tolerance (D)+ 0,1 mm
Screwdriver blade0.6 x 3.5
Stripping length10 mm
L1 in inches0.6 inch
Touch-safe protection acc. to DIN VDE 57 106Safe from finger touch
Rated Data Acc. To IEC
- tested acc. to standard
- IEC 60664-1, IEC 61984
- Rated current, max. no. of poles (Ta = 20°C)
- 24 A
- Rated current, max. no. of poles (Ta = 40°C)
- 24 A
- Rated voltage for surge voltage class / pollution degree III/2
- 320 V
- Rated impulse voltage for surge voltage class/ pollution degree II/2
- 4 kV
- Rated impulse voltage for surge voltage class/ contamination degree III/3
- 4 kV
Rated current, min. no. of poles (Ta = 20°C)24 A
Rated current, min. no. of poles (Ta = 40°C)24 A
Rated voltage for surge voltage class / pollution degree II/2400 V
Rated voltage for surge voltage class / pollution degree III/3250 V
Rated impulse voltage for surge voltage class/ pollution degree III/24 kV
Short-time withstand current resistance3 x 1s with 120 A
Notes
- IPC conformity
- The products are developed, manufactured and delivered according to the internationally recognised IPC-A-610 standard, category "permissible". More extensive demands on the products can be evaluated on request.
Conductors Suitable For Connection
- Clamping range, rated connection, min.
- 0.12 mm²
- Wire connection cross section AWG, min.
- AWG 26
- Solid, min. H05(07) V-U
- 0.2 mm²
- Flexible, min. H05(07) V-K
- 0.2 mm²
- w. plastic collar ferrule, DIN 46228 pt 4, min.
- 0.25 mm²
- w. wire end ferrule, DIN 46228 pt 1, min
- 0.25 mm²
- Plug gauge acc. to EN 60999 a x b; Ø
- 2.4 mm x 1.5 mm
Clamping range, rated connection, max.2.5 mm²
Wire connection cross section AWG, max.AWG 12
Solid, max. H05(07) V-U2.5 mm²
Flexible, max. H05(07) V-K2.5 mm²
w. plastic collar ferrule, DIN 46228 pt 4, max.2.5 mm²
w. wire end ferrule, DIN 46228 pt 1, max.2.5 mm²
