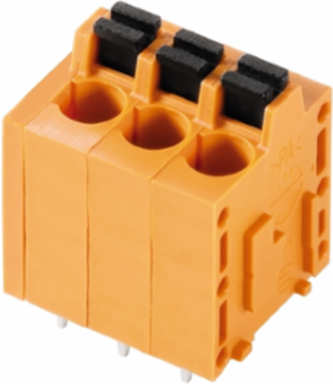

Weidmuller 1426110000 LMF 5.08/06/180 3.5SN BK BX
- MPN: 1426110000
- PPN: WDM-1426110000
CAD
$3.08
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
LMF 5.08/06/180 3.5SN BK BX
Specifications
Approvals
| Approvals | EAC |
|---|
| ROHS | Conform |
|---|
Dimensions And Weights
| Net weight | 9.243 g |
|---|
General Ordering Data
| Type | LMF 5.08/06/180 3.5SN BK BX |
|---|---|
| Version | PCB terminal, 5.08 mm, No. of poles: 6, 180°, Solder pin length (l): 3.5 mm, tinned, Black, PUSH IN, Clamping range, rated connection, max.: 2.5 mm², Box |
| Qty. | 45 pc(s). |
| Product data | UL: 300 V / 10 A / AWG 26 - AWG 12 |
| Order No. | 1426110000 |
|---|---|
| GTIN (EAN) | 4050118229905 |
| Product data | IEC: 400 V / 24 A / 0.2 - 2.5 mm² |
| Packaging | Box |
Rated Data Acc. To CSA
| Rated voltage (Use group B) | 300 V |
|---|---|
| Rated voltage (use group D) | 300 V |
| Rated current (use group C) | 10 A |
| Wire cross-section, AWG, min. | AWG 26 |
| Rated voltage (Use group C) | 50 V |
|---|---|
| Rated current (use group B) | 10 A |
| Rated current (use group D) | 10 A |
| Wire cross-section, AWG, max. | AWG 12 |
Rated Data Acc. To UL 1059
| Rated voltage (use group B) | 300 V |
|---|---|
| Rated voltage (use group D) | 300 V |
| Rated current (use group C) | 10 A |
| Wire cross-section, AWG, min. | AWG 26 |
| Rated voltage (use group C) | 50 V |
|---|---|
| Rated current (use group B) | 10 A |
| Rated current (use group D) | 10 A |
| Wire cross-section, AWG, max. | AWG 12 |
Material Data
| Insulating material | Wemid (PA) |
|---|---|
| Colour chart (similar) | RAL 9011 |
| Insulation resistance | ≥ 10 |
| Contact material | CuSn |
| Coating | 4-6 μm SN |
| Layer structure of solder connection | 4-6 µm Sn matt |
| Storage temperature, max. | 55 °C |
| Operating temperature, min. | -50 °C |
| Temperature range, installation, min. | -25 °C |
| Colour | Black |
|---|---|
| CTI | ≥ 600 |
| UL 94 flammability rating | V-0 |
| Contact surface | tinned |
| Tinning type | matt |
| Storage temperature, min. | -25 °C |
| Max. relative humidity during storage | 80 % |
| Operating temperature, max. | 120 °C |
| Temperature range, installation, max. | 120 °C |
Classifications
| ETIM 3.0 | EC001284 |
|---|---|
| ETIM 5.0 | EC002643 |
| eClass 6.2 | 27-26-11-01 |
| eClass 8.1 | 27-44-04-01 |
| eClass 9.1 | 27-44-04-01 |
| ETIM 4.0 | EC002643 |
|---|---|
| ETIM 6.0 | EC002643 |
| eClass 7.1 | 27-44-04-01 |
| eClass 9.0 | 27-44-04-01 |

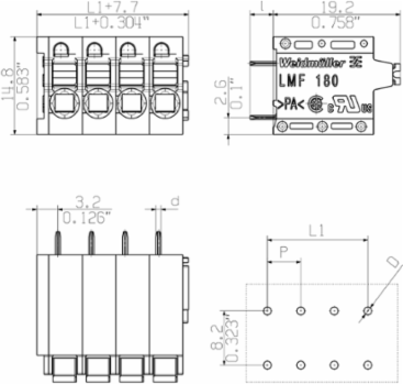

System Parameters
| Product family | OMNIMATE Signal - series LMF |
|---|---|
| Mounting onto the PCB | THT solder connection |
| Pitch in mm (P) | 5.08 mm |
| No. of poles | 6 |
| Number of rows | 1 |
| Solder pin length (l) | 3.5 mm |
| Solder eyelet hole diameter (D) | 1.1 mm |
| Number of solder pins per pole | 2 |
| Screwdriver blade standard | DIN 5264 |
| L1 in mm | 25.4 mm |
| Touch-safe protection acc. to DIN VDE 0470 | IP 20 |
| Insulation resistance | ≥ 10 |
| Wire connection method | PUSH IN |
|---|---|
| Conductor outlet direction | 180° |
| Pitch in inches (P) | 0.2 inch |
| Fitted by customer | No |
| Max. adjacent poles per row | 24 |
| Solder pin dimensions | d = 0.8 mm |
| Solder eyelet hole diameter tolerance (D) | + 0,1 mm |
| Screwdriver blade | 0.6 x 3.5 |
| Stripping length | 10 mm |
| L1 in inches | 1 inch |
| Touch-safe protection acc. to DIN VDE 57 106 | Safe from finger touch |

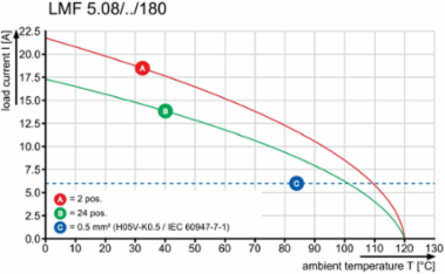

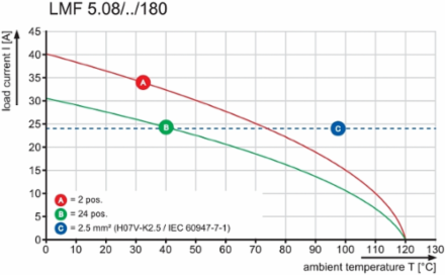

Rated Data Acc. To IEC
| tested acc. to standard | IEC 60664-1, IEC 61984 |
|---|---|
| Rated current, max. no. of poles (Ta = 20°C) | 24 A |
| Rated current, max. no. of poles (Ta = 40°C) | 24 A |
| Rated voltage for surge voltage class / pollution degree III/2 | 320 V |
| Rated impulse voltage for surge voltage class/ pollution degree II/2 | 4 kV |
| Rated impulse voltage for surge voltage class/ contamination degree III/3 | 4 kV |
| Rated current, min. no. of poles (Ta = 20°C) | 24 A |
|---|---|
| Rated current, min. no. of poles (Ta = 40°C) | 24 A |
| Rated voltage for surge voltage class / pollution degree II/2 | 400 V |
| Rated voltage for surge voltage class / pollution degree III/3 | 250 V |
| Rated impulse voltage for surge voltage class/ pollution degree III/2 | 4 kV |
| Short-time withstand current resistance | 3 x 1s with 120 A |
Notes
| IPC conformity | The products are developed, manufactured and delivered according to the internationally recognised IPC-A-610 standard, category "permissible". More extensive demands on the products can be evaluated on request. |
|---|
Conductors Suitable For Connection
| Clamping range, rated connection, min. | 0.12 mm² |
|---|---|
| Wire connection cross section AWG, min. | AWG 26 |
| Solid, min. H05(07) V-U | 0.2 mm² |
| Flexible, min. H05(07) V-K | 0.2 mm² |
| w. plastic collar ferrule, DIN 46228 pt 4, min. | 0.25 mm² |
| w. wire end ferrule, DIN 46228 pt 1, min | 0.25 mm² |
| Plug gauge acc. to EN 60999 a x b; Ø | 2.4 mm x 1.5 mm |
| Clamping range, rated connection, max. | 2.5 mm² |
|---|---|
| Wire connection cross section AWG, max. | AWG 12 |
| Solid, max. H05(07) V-U | 2.5 mm² |
| Flexible, max. H05(07) V-K | 2.5 mm² |
| w. plastic collar ferrule, DIN 46228 pt 4, max. | 2.5 mm² |
| w. wire end ferrule, DIN 46228 pt 1, max. | 2.5 mm² |
