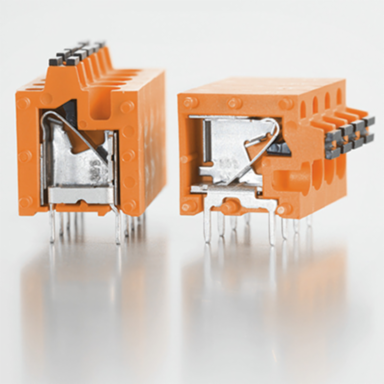

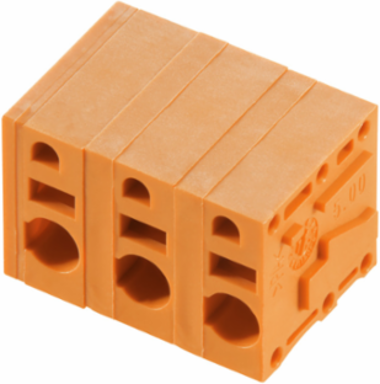

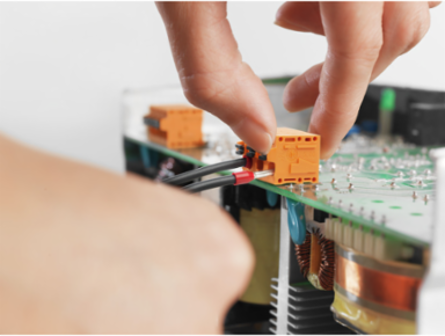

Weidmuller 2667420000 LMFS 7.50/02/90 3.5SN OR BX
- MPN: 2667420000
- PPN: WDM-2667420000
CAD
$1.18
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

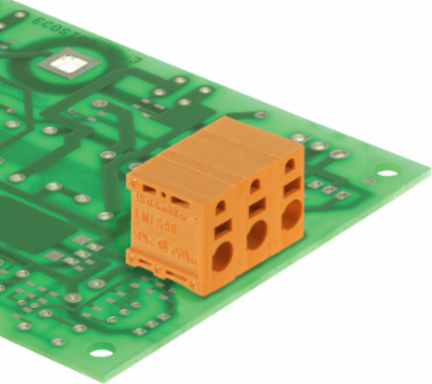

Printed circuit board terminals, 7.50 mm, Number of poles: 2, 90°, Solder pin length (l): 3.5 mm, orange, PUSH IN without actuator, Clamping range, max. : 2.5 mm², Box
Specifications
Dimensions And Weights
- Width
- 15.2 mm
- Height
- 18.3 mm
- Height of lowest version
- 14.8 mm
- Depth (inches)
- 0.598 inch
Width (inches)0.598 inch
Height (inches)0.72 inch
Depth15.2 mm
Net weight0 g
Material Data
- Insulating material
- Wemid (PA)
- Colour chart (similar)
- RAL 2000
- Insulation strength
- ≥ 108 Ω
- Coating
- 4-6 μm SN
- Layer structure of solder connection
- 4-6 µm Sn matt
- Storage temperature, max.
- 55 °C
- Operating temperature, min.
- -50 °C
- Temperature range, installation, min.
- -25 °C
Colourorange
Comparative Tracking Index (CTI)≥ 600
UL 94 flammability ratingV-0
Tinning typematt
Storage temperature, min.-25 °C
Max. relative humidity during storage80 %
Operating temperature, max.120 °C
Temperature range, installation, max.120 °C
Classifications
- ETIM 6.0
- EC002643
- eClass 9.0
- 27-44-04-01
- eClass 10.0
- 27-44-04-01
ETIM 7.0EC002643
eClass 9.127-44-04-01
System Parameters
- Product family
- OMNIMATE Signal - series LMF
- Mounting onto the PCB
- THT solder connection
- Pitch in mm (P)
- 7.5 mm
- Number of rows
- 1
- Solder pin length (l)
- 3.5 mm
- Solder eyelet hole diameter (D)
- 1.1 mm
- Number of solder pins per pole
- 2
- Screwdriver blade standard
- DIN 5264
- Insulation strength
- ≥ 108 Ω
Wire connection methodPUSH IN without actuator
Conductor outlet direction90°
Number of poles2
Max. adjacent poles per row12
Solder pin dimensionsd = 0.8 mm
Solder eyelet hole diameter tolerance (D)+ 0,1 mm
Screwdriver blade0.6 x 3.5
Stripping length10 mm
Packing
- Packaging
- Box
- VPE width
- 0
VPE length0
VPE height0
Notes
- Notes

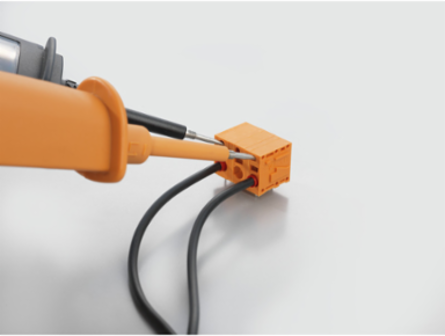

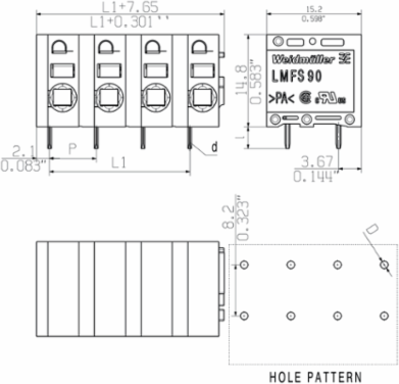

- Additional colours on request Rated current related to rated cross-section & min. No. of poles. Wire end ferrule without plastic collar to DIN 46228/1 Wire end ferrule with plastic collar to DIN 46228/4 P on drawing = pitch Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards. The test point can only be used as potential-pickup point.
IPC conformityConformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Conductors Suitable For Connection
- Clamping range, min.
- 0.12 mm²
- Wire connection cross section AWG, min.
- AWG 24
- Solid, min. H05(07) V-U
- 0.5 mm²
- Flexible, min. H05(07) V-K
- 0.25 mm²
- w. plastic collar ferrule, DIN 46228 pt 4, min.
- 0.25 mm²
- w. wire end ferrule, DIN 46228 pt 1, min.
- 0.25 mm²
- Max. clamping range
- 2.5 mm²
Clamping range, max.2.5 mm²
Wire connection cross section AWG, max.AWG 12
Solid, max. H05(07) V-U2.5 mm²
Flexible, max. H05(07) V-K2.5 mm²
w. plastic collar ferrule, DIN 46228 pt 4, max.2.5 mm²
w. wire end ferrule, DIN 46228 pt 1, max.2.5 mm²
Rated Data Acc. To Csa
- Wire cross-section, AWG, min.
- AWG 24
Wire cross-section, AWG, max.AWG 12
