Weidmuller 2667510000 LMFS 7.50/11/90 3.5SN OR BX

MPN: 2667510000
PPN: WDM-2667510000

$6.50

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

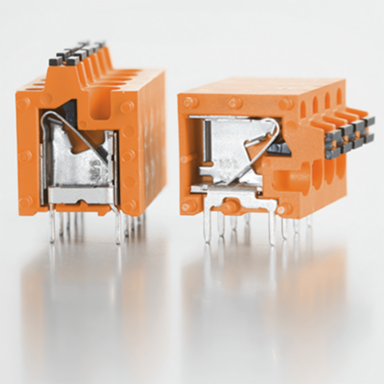

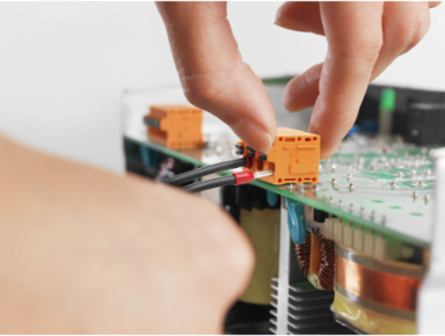

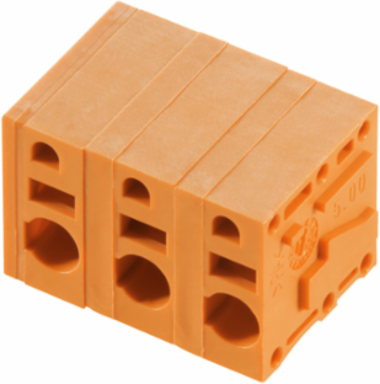

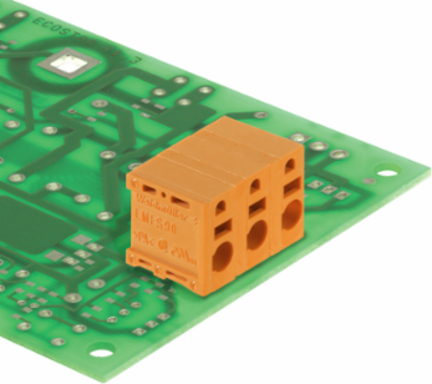

Printed circuit board terminals, 7.50 mm, Number of poles: 11, 90°, Solder pin length (l): 3.5 mm, orange, PUSH IN without actuator, Clamping range, max. : 2.5 mm², Box

Specifications

Dimensions And Weights

Width	60.2 mm
Height	18.3 mm
Height of lowest version	14.8 mm
Depth (inches)	0.598 inch

Width (inches)	2.37 inch
Height (inches)	0.72 inch
Depth	15.2 mm
Net weight	0 g

Material Data

Insulating material	Wemid (PA)
Colour chart (similar)	RAL 2000
Insulation strength	≥ 108 Ω
Coating	4-6 μm SN
Layer structure of solder connection	4-6 µm Sn matt
Storage temperature, max.	55 °C
Operating temperature, min.	-50 °C
Temperature range, installation, min.	-25 °C

Colour	orange
Comparative Tracking Index (CTI)	≥ 600
UL 94 flammability rating	V-0
Tinning type	matt
Storage temperature, min.	-25 °C
Max. relative humidity during storage	80 %
Operating temperature, max.	120 °C
Temperature range, installation, max.	120 °C

Classifications

ETIM 6.0	EC002643
eClass 9.0	27-44-04-01
eClass 10.0	27-44-04-01

ETIM 7.0	EC002643
eClass 9.1	27-44-04-01

System Parameters

Product family	OMNIMATE Signal - series LMF
Mounting onto the PCB	THT solder connection
Pitch in mm (P)	7.5 mm
Number of rows	1
Solder pin length (l)	3.5 mm
Solder eyelet hole diameter (D)	1.1 mm
Number of solder pins per pole	2
Screwdriver blade standard	DIN 5264
Insulation strength	≥ 108 Ω

Wire connection method	PUSH IN without actuator
Conductor outlet direction	90°
Number of poles	11
Max. adjacent poles per row	12
Solder pin dimensions	d = 0.8 mm
Solder eyelet hole diameter tolerance (D)	+ 0,1 mm
Screwdriver blade	0.6 x 3.5
Stripping length	10 mm

Packing

Packaging	Box
VPE width	0

VPE length	0
VPE height	0

Notes

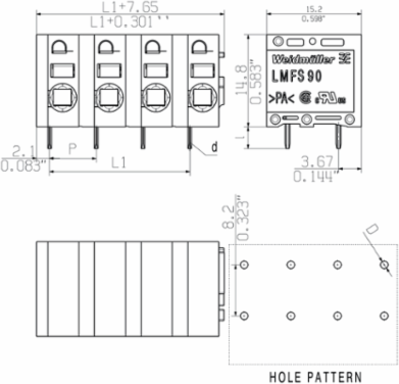

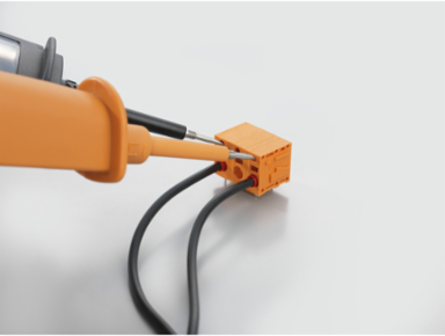

Additional colours on request Rated current related to rated cross-section & min. No. of poles. Wire end ferrule without plastic collar to DIN 46228/1 Wire end ferrule with plastic collar to DIN 46228/4 P on drawing = pitch Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards. The test point can only be used as potential-pickup point.

IPC conformity	Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.

Conductors Suitable For Connection

Clamping range, min.	0.12 mm²
Wire connection cross section AWG, min.	AWG 24
Solid, min. H05(07) V-U	0.5 mm²
Flexible, min. H05(07) V-K	0.25 mm²
w. plastic collar ferrule, DIN 46228 pt 4, min.	0.25 mm²
w. wire end ferrule, DIN 46228 pt 1, min.	0.25 mm²
Max. clamping range	2.5 mm²

Clamping range, max.	2.5 mm²
Wire connection cross section AWG, max.	AWG 12
Solid, max. H05(07) V-U	2.5 mm²
Flexible, max. H05(07) V-K	2.5 mm²
w. plastic collar ferrule, DIN 46228 pt 4, max.	2.5 mm²
w. wire end ferrule, DIN 46228 pt 1, max.	2.5 mm²
