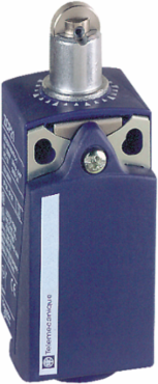

Telemecanique Sensors XCKP2502G11 Limit switch, Limit switches XC Standard, XCKP, steel roller plunger, 1NC+1 NO, slow, Pg11

MPN: XCKP2502G11
PPN: TES-XCKP2502G11

$72.30

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Limit switch, Limit switches XC Standard, XCKP, steel roller plunger, 1NC+1 NO, slow, Pg11

Documentation & Downloads

Specifications

Key Specifications

Movement Of Operating Head	linear
Fixing Mode	by the body
Sensor Design	compact form C CENELEC EN 50047
Head Material	zamak
Head Type	plunger head
Series Name	standard format
Body Type	fixed
Body Material	plastic
Number Of Poles	2

Range Of Product	Telemecanique Limit switches XC Standard
Type Of Operator	spring return roller plunger metal
Product Or Component Type	limit switch
Material	plastic
Type Of Approach	lateral approach, 2 directions
Contacts Type And Composition	1 NC + 1 NO
Contact Operation	slow-break, break before make
Device Short Name	XCKP

Complementary

Height	65-65 mm
Short-Circuit Protection	10 A cartridge fuse gG
Cable Entry	1 entry tapped for Pg 11 cable gland
[Uimp] Rated Impulse Withstand Voltage	6 kV IEC 60664 \|\| 6 kV IEC 60947-1
[Ui] Rated Insulation Voltage	300 VUL 508 \|\| 500 V 3)IEC 60947-1 \|\| 300 VCSA C22.2 No 14
Positive Opening Minimum Force	36 N
Contacts Insulation Form	Zb
Maximum Actuation Speed	0.5 m/s
Contact Code Designation	A300, AC-15 (Ue = 240 V), Ie = 3 A 10 A EN/IEC 60947-5-1 appendix A \|\| Q300, DC-13 (Ue = 250 V), Ie = 0.27 A EN/IEC 60947-5-1 appendix A
Depth	30 mm
Maximum Resistance Across Terminals	25 MOhm IEC 60255-7 category 3

Terminals Description Iso N°1	(13-14)NO \|\| (21-22)NC
Electrical Connection	screw-clamp terminals 1 x 0.5...2 x 2.5 mm²
Net Weight	0.095 kg
Switch Actuation	by 30° cam
Electrical Durability	5000000 cycles, DC-13, 120 V, 4 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C \|\| 5000000 cycles, DC-13, 24 V, 10 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C \|\| 5000000 cycles, DC-13, 48 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
Positive Opening	with
Mechanical Durability	10000000 cycles
Minimum Force For Tripping	12 N
Width	31 mm
Repeat Accuracy	0.1 mm on the tripping points with 1 million operating cycles

Environment

Product Certifications	CCC \|\| UL \|\| CSA
Ambient Air Temperature For Operation	-25-70 °C
Shock Resistance	50 gn 11 ms IEC 60068-2-27
Ip Degree Of Protection	IP66 IEC 60529 \|\| IP67 IEC 60529
Electrical Shock Protection Class	class II IEC 61140 \|\| class II NF C 20-030

Ik Degree Of Protection	IK04 EN 50102
Standards	CSA C22.2 No 14 \|\| EN 60947-5-1 \|\| UL 508 \|\| IEC 60947-5-1 \|\| EN 60204-1 \|\| IEC 60204-1
Vibration Resistance	25 gn 10-500 Hz)IEC 60068-2-6
Ambient Air Temperature For Storage	-40-70 °C
Protective Treatment	TC

Contractual warranty

Warranty	18 months

Offer Sustainability

Rohs Exemption Information	Yes
Environmental Disclosure	ENVPEP110606EN
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
