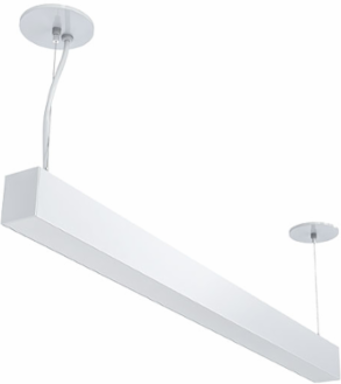

RAB 083025 Architectural Linear LED LND48-LED40 40W 120-277V Variable Temp White Finish Dimmable
- MPN: 083025
- UPC: 061184830258
- PPN: RAB-083025
CAD
$278.48
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The LND/LNUD-LED Series are linear direct/indirect architectural lighting fixtures that create a sleek, modern look for commercial spaces. These fixtures are versatile with features such as colour selection, multiple mounting options and connector accessories which facilitate lighting set ups in different shapes and configurations.
Features
- Sleek linear fixtures for direct/indirect lighting.
- Fixtures can be connected in straight runs or in different configurations using connector accessories. Examples include Octagon, Square, Rectangle, Cross, T and Y shape.
- The fixtures can be connected in the linear configuration through the bracket by simply removing the end caps and connecting the fixtures together
- The direct lighting from the fixtures have a beam angle distribution of 90 degrees.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | China |
|---|---|
| Height | 48.6 Inches |
| Lumens | 4801 |
| Efficacy | 121 |
| THD | 0.07 |
| CRI | 84 |
| LED life | 100,000 Hrs |
| CCT | VK |
| Finish | White |
| Width | 3 Inches |
|---|---|
| Depth | 3.7 Inches |
| Watts | 40 |
| Operating Temperature | -30C to +40C |
| PF | 0.95 |
| Surge Protection | 2.5 kV |
| Materials | Extruded Aluminum |
| Voltage | 120-277V |
| Dimmable | Yes |
