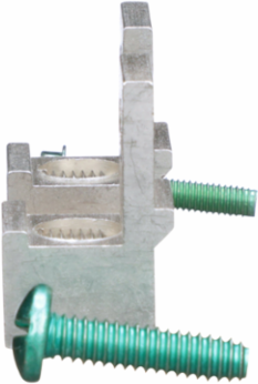

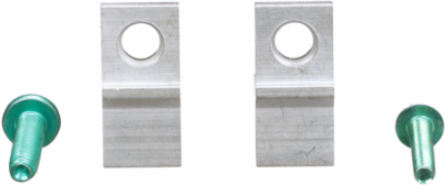

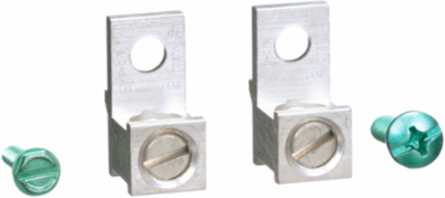

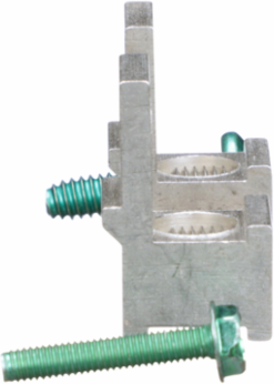

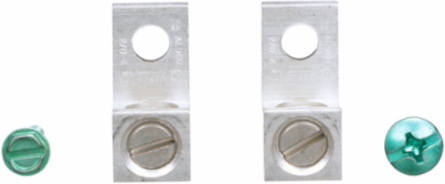

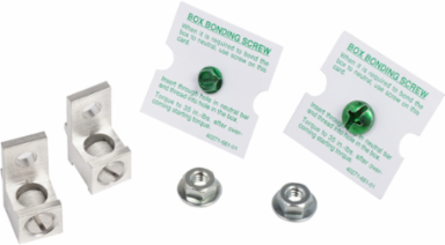

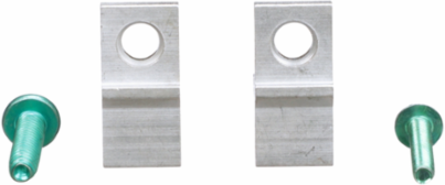

Square D QOL125 Load Centre Main Lug Kit 125A for 6 AWG to 2/0 AWG Wire

MPN: QOL125
UPC: 785901747963
PPN: SCH-QOL125

$268.11

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. There is a full line of accessories available for these circuit breakers. This mains lugs kit is for field installable in convertible main circuit breaker and main lugs load centers. Kit can be used for load centers rated from 100 to 125 A. The lugs will accept 6 AWG to 2/0 AWG copper or aluminum wire. Lug is UL listed and CSA certified.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	United States

Complementary Attributes

Line Rated Current	125 A

Important Information Attributes

Persona Type Ids	EU, LC, OM
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	2
Weee Product Category	5
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	No
Tier Id	3
Function Option Id	STANDARD
Market Segmentation Id	RESIDENTIAL
Product Kit Identifier	N
Energy Efficiency Optimized	False
Product Availability	Stock - Normally stocked in distribution facility
Range Of Product	QO
Sustainable Packaging	No
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8536904000

Persona Type Names	End User, Contractor, Original Equipment Manufacturer
Local Publishable Date	2026-07-14
Stocking Flag	N
Weee Scope	In
Scope Perimeter	Outside of Europe
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	2531
China Rohs In Scope	No
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Tier	3
Function Option	Standard
Market Segmentation	Residential
Awg Gauge	6 AWG...2/0 AWG aluminium/copper
Phase	1 phase
Product Or Component Type	lug kit
Returnability	Yes
Tightening Torque	8.5 N.m
Package Weight(Lbs)	104.326 g
Warranty (In Months)	18

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
Reach Free Shvc	Yes
Toxic Heavy Metal Free	Yes
Eu Rohs Directive	Compliant
Packaging Without Single Use Plastic	No
Reach Regulation	Free of Substances of Very High Concern above the threshold
