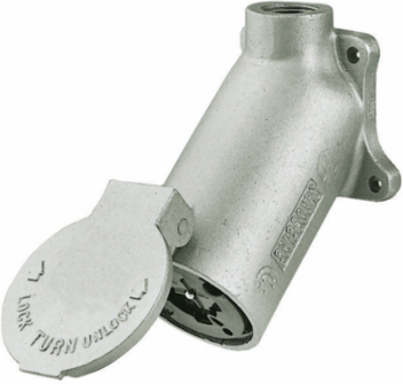

Bryant 21420 Industrial Flanged Receptacle, 30A 250V DC/600V AC, 3-Pole 4-Wire, Cast Aluminum, IP44
- MPN: 21420
- UPC: 781786618633
- PPN: HBL-21420
- UNSPSC: 39121406
CAD
$720.75
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Locking Devices, Bryant Power Interrupting, Industrial, Flanged Receptacle, 30A 600V AC/20A 250V DC, 3-Pole 4-Wire Grounding, Non-NEMA, Screw Terminal, Cast aluminum angle housing with ¾ in. NPT hub
Features
- Spring loaded safety shutter contains arcing when mating or un-mating devices under load
- Spring loaded safety shutter automatically ejects the plug eliminating contact teasing
- Box terminals in conjunction with screws with pressure pads provide maximum termination strength and dependability
- Angled housing reduces the profile of the device and makes mating and un-mating easier
- Metallic weather protective spring loaded cover provides protection from moisture and dust
- In Aluminum Housing
Documentation & Downloads
Specifications
Additional
- Amperage
- 20A/30A
- Number of Poles
- 3-Pole
- Size
- 3.28 in x 1.94 in x 1.75 in
- Width
- 1.94 in
- Material
- Composite
- Mounting Type
- Flanged
- Wire Size Range
- #18 AWG to #8 AWG
- Country of Origin
- US
- Phase
- Single Phase
Voltage250 VDC/600 VAC
Number of Wires4-Wire
Length3.28 in
Height1.75 in
Connection TypeScrew Terminal
Housing AngleAngled
ColorMetallic
Environmental SuitabilityMoisture and Dust Protection
