Bryant

Bryant 26410 Industrial Power Interrupting Receptacle, 60A 600V AC, 3-Pole 4-Wire, Screw Terminal

Industrial Power Interrupting Receptacle, 60A 600V AC, 3-Pole 4-Wire, Screw Terminal
  • MPN: 26410
  • UPC: 781786584105
  • PPN: HBL-26410
  • UNSPSC: 39121406

Spec sheet

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$948.43/ EA

Description

Locking Devices, Bryant Power Interrupting, Industrial, Receptacle, 60A 600V AC, 3-Pole 4-Wire Grounding, Non-NEMA, Screw Terminal, Black phenolic with short aluminum housing and lift cover

Features

  • Spring loaded safety shutter contains arcing when mating or un-mating devices under load
  • Spring loaded safety shutter automatically ejects the plug eliminating contact teasing
  • Box terminals in conjunction with stainless steel screws provide maximum termination strength and dependability
  • Metallic weather protective spring loaded cover provides protection from moisture and dust

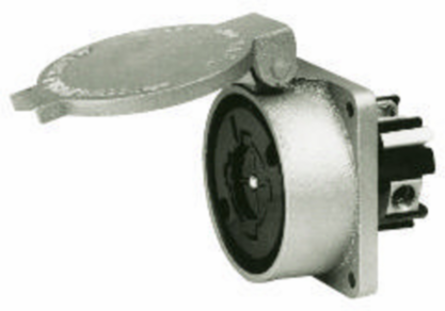

  • Receptacle with Short Aluminum Housing and Lift Cover

Specifications

Amperage
60 A
Number of Poles
3-Pole
Phase
Multi Phase
Dimensions
4.62 in x 3.50 in x 3.57 in
Material
Composite
Style
Grounding
Country of Origin
US
Voltage600 VAC
Number of Wires4-Wire
Terminal TypeTerminal Screws
Wire Size#14 AWG to #10 AWG
Mounting HardwareScrew Mounting
TypeReceptacle
