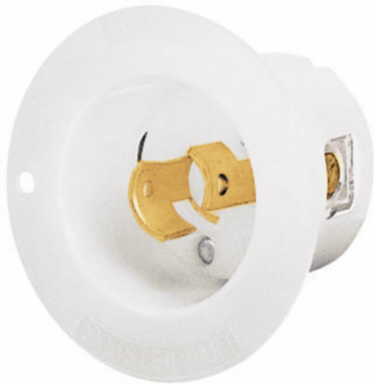

Hubbell 8808MB Flanged Inlet Locking Device 20A 250V 2-Pole 2-Wire Composite 2.56 Inch x 2.56 Inch
- MPN: 8808MB
- UPC: 781786630789
- PPN: HBL-8808MB
- UNSPSC: 39121406
CAD
$46.85
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Locking Devices, Flanged Inlet, 20A 250V, 2-Pole 2-Wire Non-Grounding, NEMA L2-20, White
Features
- Impact resistant thermoplastic construction
- Backwired terminations for ease of installation
- #10-32 Multiple drive terminal screws
- Mounting screws included
- Standard Product
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Height
- 1.72 in
- Standards - RoHS Compliance Status
- CM
- Application
- Extra Heavy Duty Industrial
- Dielectric Strength
- Withstands 3000V Minimum in
- Insulation
- Insulated Body
- Number of Poles
- 2-Pole
- Size
- 2.56 in x 2.56 in x 1.72 in
- Temperature Rating
- Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact
- Voltage Rating
- 250 V
- Voltage Rating Description
- 250V
- Connectivity
- Screw Terminals
- Nema Rating
- L2-20P
- Number Of Wires
- 2-Wire
- Class Code
- A08
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- 8808
- Material - Mounting Hardware
- Screw Mounting
- Material
- Composite
- BOX SIZE
- 7.200x10.200x8.500 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 781786630789
- Case - Total Units
- 30 EA
- Each - Pack Description
- Each
Dimensions2.56 in x 2.56 in x 1.72 in
Length2.56 in
Amperage Rating20 A
ColorWhite
Environmental ConditionsIndoor Dry Unless Protected By Additional Means
NEMA RatingL2-20P
Number of Wires2-Wire
Special FeaturesStandard Product
TypeFlanged Inlet
Wire Size#18 AWG to #8 AWG
Width2.56 in
Display SizeStandard Sized Product
Number Of Poles2-Pole
StyleEquipment Base
Description - Invoice20A/250V 2P 2W MALE BASE
Harmonization Code8536694020
MSDS FlagNo
Sub Class CodeA08A110
Current Rating20 A
Base Unit of MeasureEA
Carton - Gross Weight per Pack1.500 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Case Weight1.850 lb.
Lowest Level UOMEach
Certifications
- EU RoHS Indicator
- No
